SKU: HGJ100-JCS

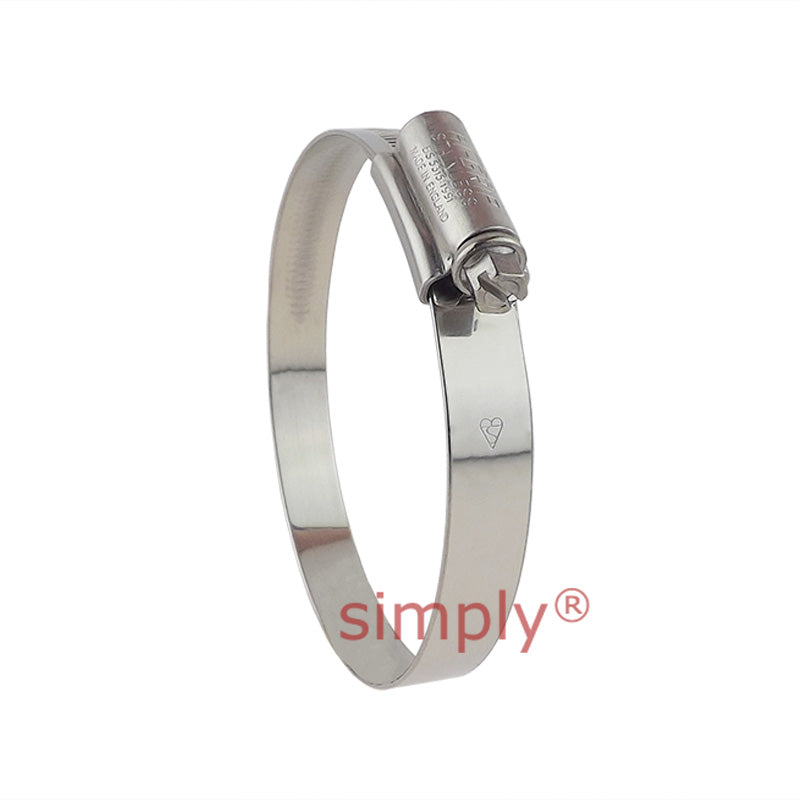

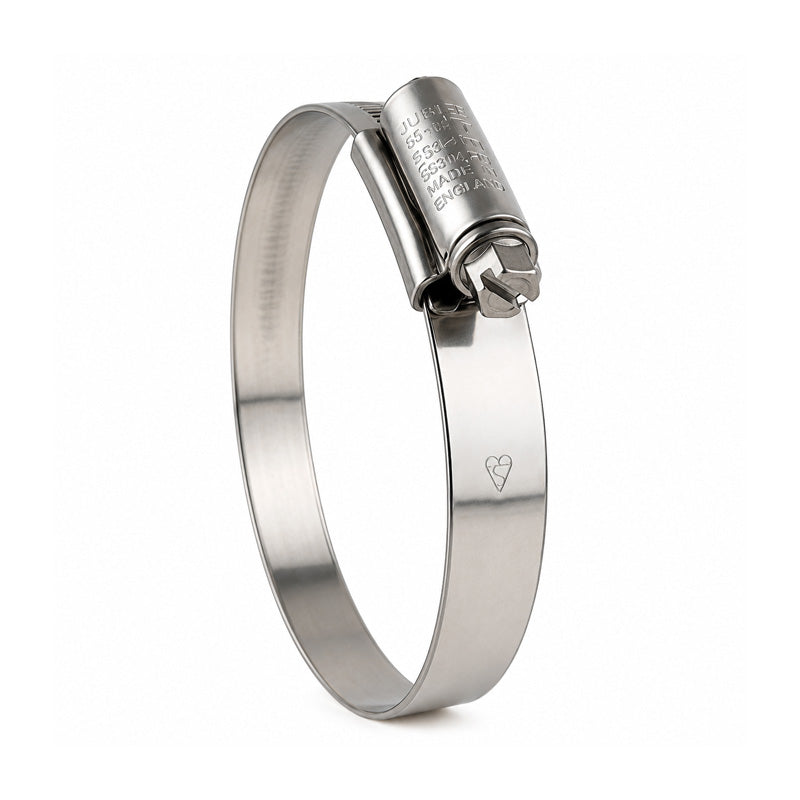

JCS HGJ100 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 80-100mm Band Width 13mm
JCS HGJ100 316 Stainless Steel Hi-Grip Hose Clip Adjustment Range 80-100mm Band Width 13mm
Regular price
$15.65
ex VAT
Regular price
Sale price
$15.65
ex VAT
In stock
Price Break
10+
$13.93
19+
$13.15
29+
$12.99
39+
$12.83
49+
$12.68
74+
$12.52
99+
$11.74
199+
$11.58
249+
$11.42
499+
$11.27
999+
$10.96
Description
Description
316 Stainless Steel Hi-Grip Worm Drive Hose Clips: Principally aimed at the marine, food, petrochemical and pharmaceutical industries, the Hi-Grip 316 hose clip is made entirely from BS316 EN 1.4401/1.4578 austenitic stainless steel, providing the same superior performance as the rest of the Hi-Grip range but with maximum corrosion resistance. Lloyd’s Register Type Approved for marine, offshore and industrial use. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse. They are manufactured to exceed BS5315, which has the highest requirements of any of the international standards and tests sealing ability, clamping force and torque.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 80mm
- Max Adjustment Range:
- 100mm
Technical
Technical
| BS No. | 100 |
|---|---|
| Adjustment Range (mm) | 80-100mm |
| Adjustment Range (inch) | 3-1/8 - 4 inch |
| A | 13mm |
| B | 20mm |
| C | 12mm |
| D | 16mm |
| E | 13mm |
| F | 0.9mm |
| Screw | 7mm A/F |
| Recommended Torque Nm | 6Nm |
| Recommended Torque lb-in | 54lb-in |
