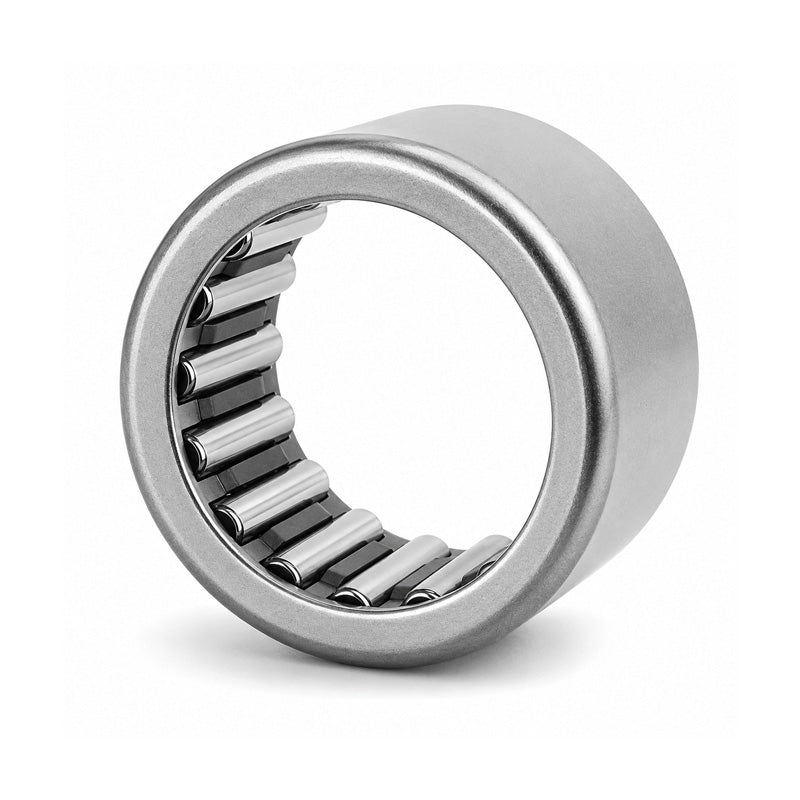

NTN HK0709FM Drawn Cup Needle Roller Bearing with Open End 7x11x9mm
NTN HK0709FM Drawn Cup Needle Roller Bearing with Open End 7x11x9mm
Regular price
$6.00
ex VAT
Regular price
Sale price
$6.00
ex VAT
In stock
Price Break
10+
$5.34
19+
$5.04
29+
$4.98
39+
$4.92
49+
$4.86
74+
$4.80
99+
$4.50
199+
$4.44
249+
$4.38
499+
$4.32
999+
$4.20
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 11mm
- Width:
- 9mm
Technical
Technical
| Fw - Inside diameter | 7mm |
|---|---|
| D - Outside diameter | 11mm |
| C - Width of bearing, drawn cup or outer ring | 9mm |
| Lubrication hole on outer ring? | No |
| Cr - Dynamic load rating | 3.15 kN |
| C0r - Static load rating | 2.93 kN |
| N - Grease lubrication limit speed | 23000 tr/min |
| N - Oil lubrication limit speed | 34000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
