SKU: HK0810RS-EU

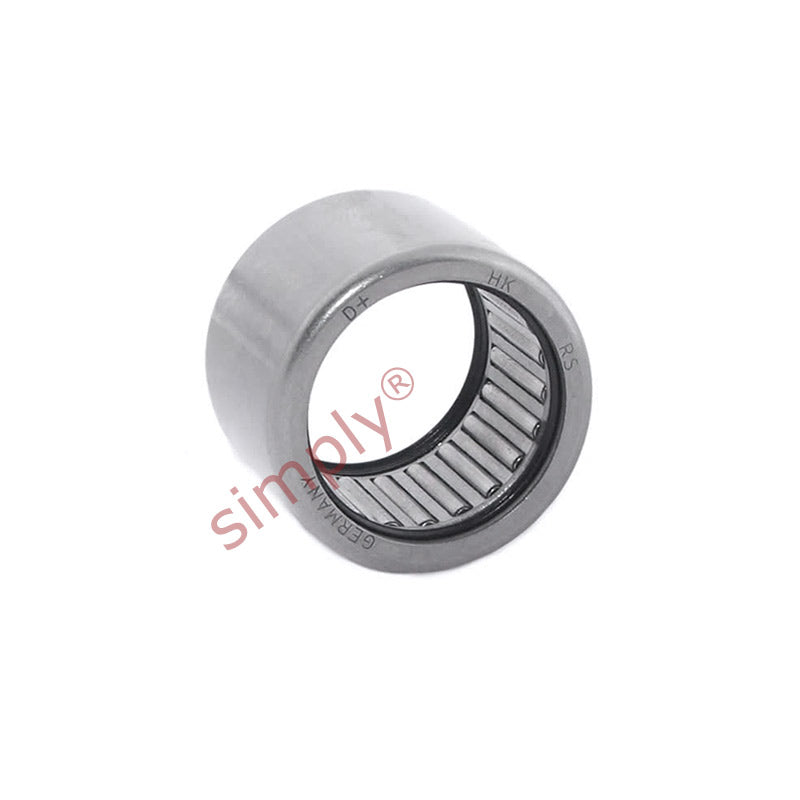

HK0810RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 8x12x10mm
HK0810RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 8x12x10mm
Regular price
$4.04
ex VAT
Regular price
Sale price
$4.04
ex VAT
In stock
Price Break
10+
$3.60
19+
$3.39
29+
$3.35
39+
$3.31
49+
$3.27
74+
$3.23
99+
$3.03
199+
$2.99
249+
$2.95
499+
$2.91
999+
$2.83
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 12mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 8mm |
|---|---|
| D | 12mm |
| C | 10mm |
| Dynamic load C | 2700 N |
| Static load Co | 2750 N |
| Fatigue load limit Pu | 285 N |
| Speed in grease | 14000 rpm |
| r1r2 min | 0.4mm |
| Da max | 8.3mm |
| ra max | 0.4mm |
| Inner ring | IR5x8x12 |
| Weight | 3 g |
