SKU: HK0910FM-NTN

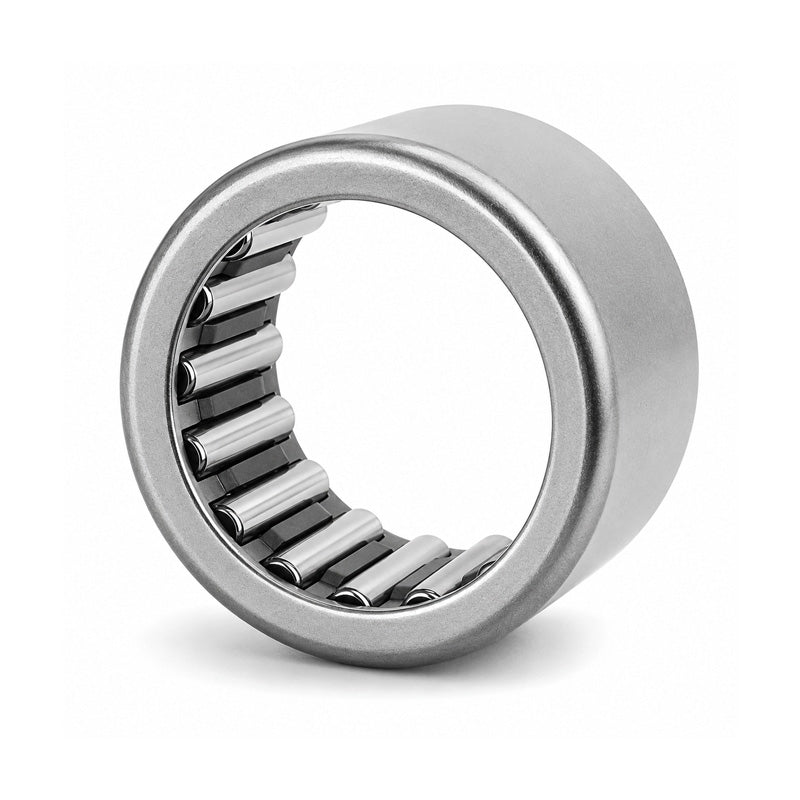

NTN HK0910FM Drawn Cup Needle Roller Bearing with Open End 9x13x10mm
NTN HK0910FM Drawn Cup Needle Roller Bearing with Open End 9x13x10mm
Regular price
$6.12
ex VAT
Regular price
Sale price
$6.12
ex VAT
In stock
Price Break
10+
$5.45
19+
$5.14
29+
$5.08
39+
$5.02
49+
$4.96
74+
$4.90
99+
$4.59
199+
$4.53
249+
$4.47
499+
$4.41
999+
$4.28
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 13mm
- Width:
- 10mm
Technical
Technical
| Fw - Inside diameter | 9mm |
|---|---|
| D - Outside diameter | 13mm |
| C - Width of bearing, drawn cup or outer ring | 10mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR6X9X12 |
| Cr - Dynamic load rating | 4.3 kN |
| C0r - Static load rating | 4.65 kN |
| N - Grease lubrication limit speed | 18000 tr/min |
| N - Oil lubrication limit speed | 27000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
