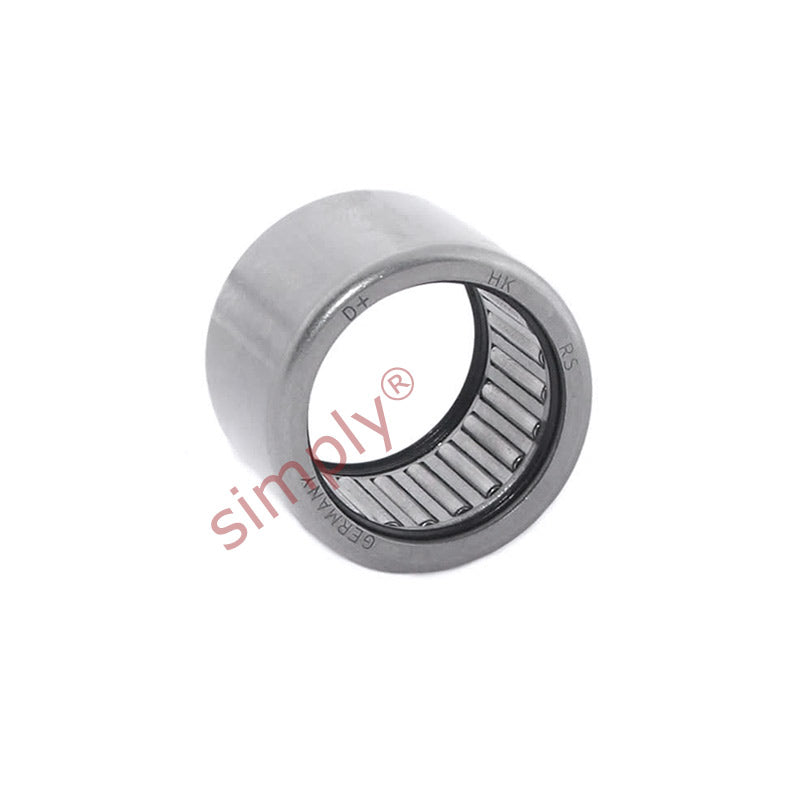

HK1414RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 14x20x14mm
HK1414RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 14x20x14mm
Regular price
$7.60
ex VAT
Regular price
Sale price
$7.60
ex VAT
In stock
Price Break
10+
$6.76
19+
$6.38
29+
$6.31
39+
$6.23
49+
$6.16
74+
$6.08
99+
$5.70
199+
$5.62
249+
$5.55
499+
$5.47
999+
$5.32
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 20mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 14mm |
|---|---|
| D | 20mm |
| C | 14mm |
| Dynamic load C | 6820 N |
| Static load Co | 8650 N |
| Fatigue load limit Pu | 980 N |
| Speed in grease | 11000 rpm |
| r1r2 min | 0.8mm |
| Da max | 15mm |
| ra max | 0.8mm |
| Inner ring | IR10x14x16 |
| Weight | 12 g |
