SKU: HK1622ZWD-NTN

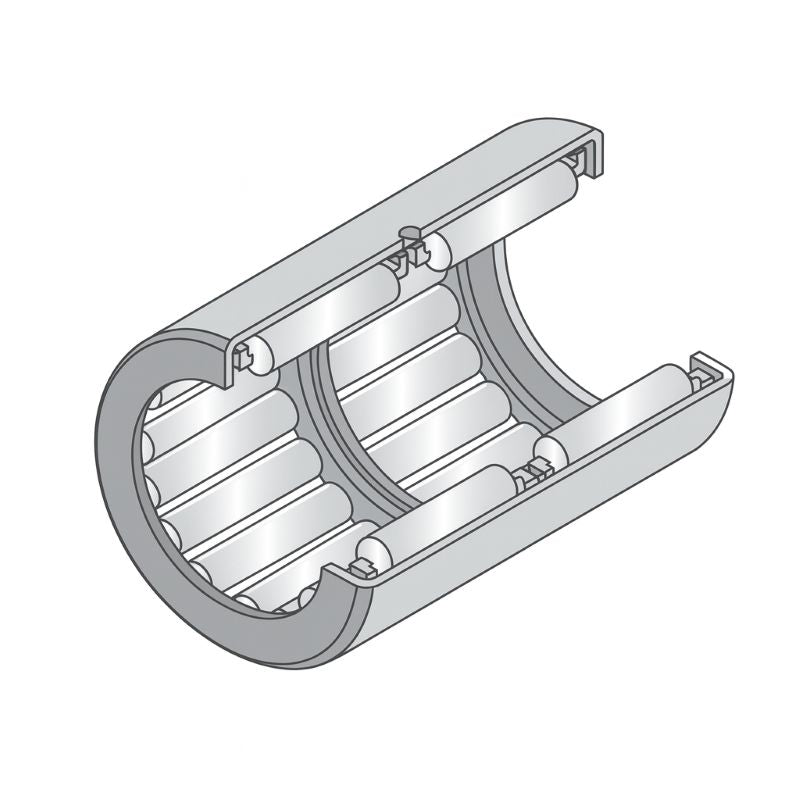

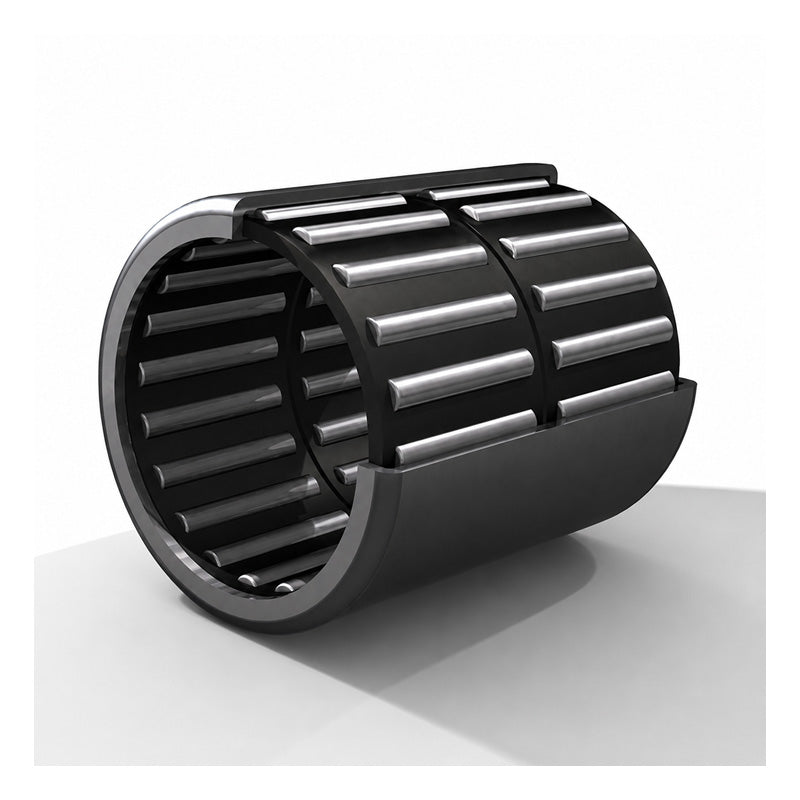

NTN HK1622ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 16x22x22mm
NTN HK1622ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 16x22x22mm
Regular price
$8.07
ex VAT
Regular price
Sale price
$8.07
ex VAT
In stock
Price Break
10+
$7.18
19+
$6.78
29+
$6.70
39+
$6.62
49+
$6.54
74+
$6.46
99+
$6.05
199+
$5.97
249+
$5.89
499+
$5.81
999+
$5.65
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 22mm
Technical
Technical
| Fw - Inside diameter | 16mm |
|---|---|
| D - Outside diameter | 22mm |
| C - Width of bearing, drawn cup or outer ring | 22mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 2.5mm |
| Cr - Dynamic load rating | 13.3 kN |
| C0r - Static load rating | 19.4 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| N - Oil lubrication limit speed | 15000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
