SKU: HK2016.2RS-EU

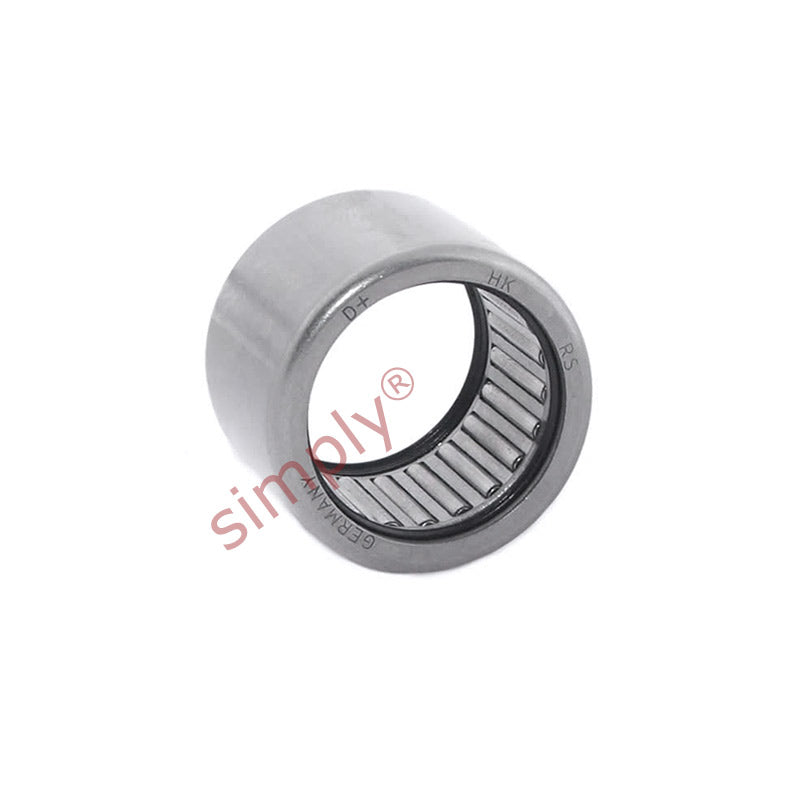

HK20162RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 20x26x16mm
HK20162RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 20x26x16mm
Regular price
$9.60
ex VAT
Regular price
Sale price
$9.60
ex VAT
In stock
Price Break
10+
$8.54
19+
$8.06
29+
$7.97
39+
$7.87
49+
$7.78
74+
$7.68
99+
$7.20
199+
$7.10
249+
$7.01
499+
$6.91
999+
$6.72
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 26mm |
| C | 16mm |
| Dynamic load C | 8420 N |
| Static load Co | 12500 N |
| Fatigue load limit Pu | 1400 N |
| Speed in grease | 9000 rpm |
| r1r2 min | 0.8mm |
| Da max | 21mm |
| ra max | 0.8mm |
| Inner ring | LR/IR17x20x16.5 |
| Weight | 18 g |
