SKU: HK2516.2RS-EU

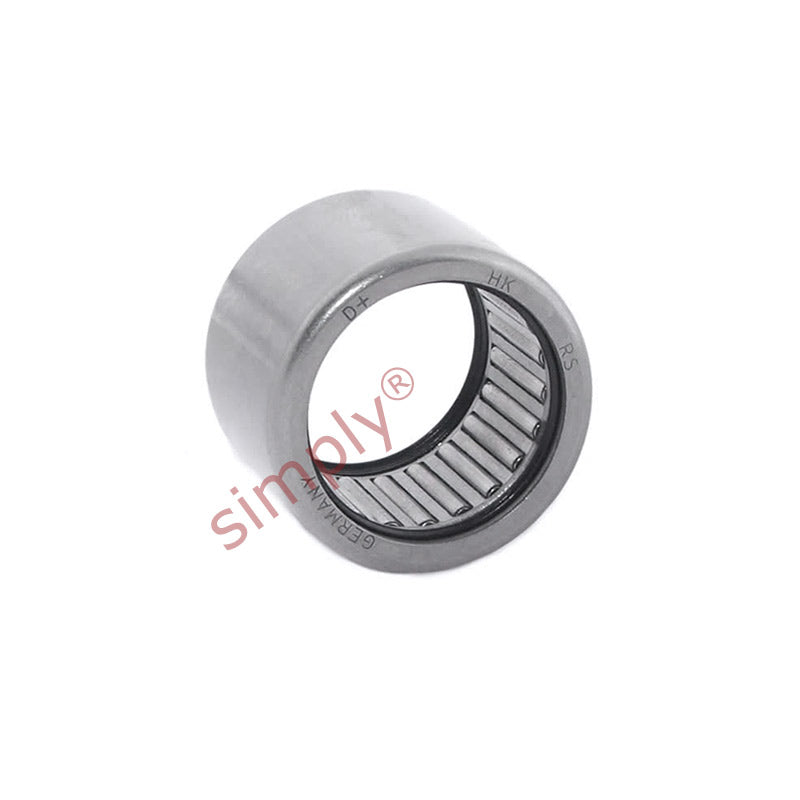

HK25162RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 25x32x16mm
HK25162RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 25x32x16mm
Regular price
$9.18
ex VAT
Regular price
Sale price
$9.18
ex VAT
In stock
Price Break
10+
$8.17
19+
$7.71
29+
$7.62
39+
$7.53
49+
$7.44
74+
$7.34
99+
$6.89
199+
$6.79
249+
$6.70
499+
$6.61
999+
$6.43
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 32mm |
| C | 16mm |
| Dynamic load C | 10500 N |
| Static load Co | 15300 N |
| Fatigue load limit Pu | 1760 N |
| Speed in grease | 7000 rpm |
| r1r2 min | 0.8mm |
| Da max | 27mm |
| ra max | 0.8mm |
| Inner ring | LR20x25x16.5 |
| Weight | 27 g |
