SKU: HK2524.2RS-EU

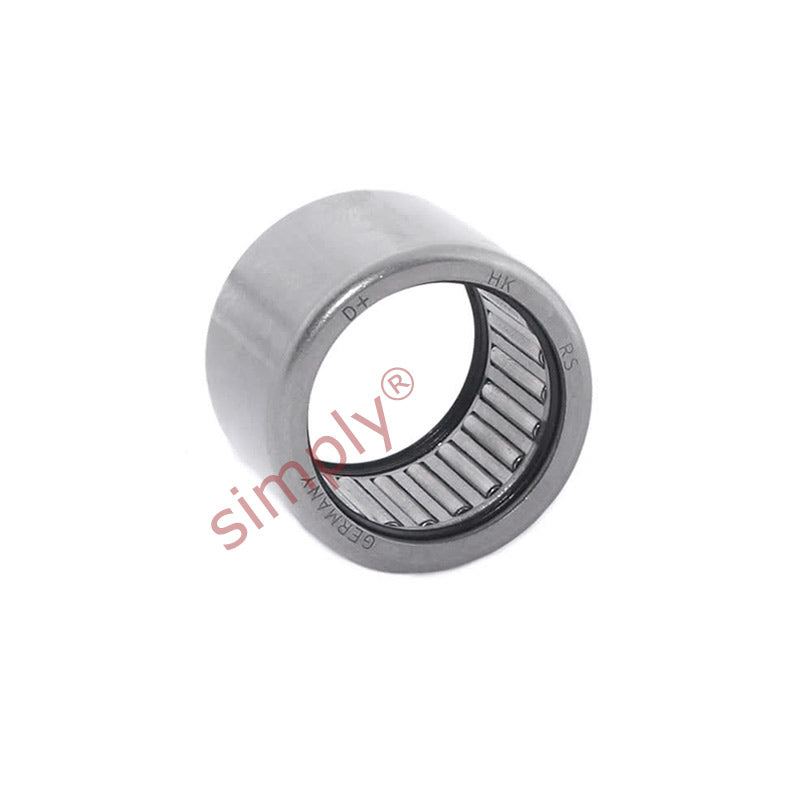

HK25242RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 25x32x24mm
HK25242RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 25x32x24mm
Regular price
$13.70
ex VAT
Regular price
Sale price
$13.70
ex VAT
In stock
Price Break
10+
$12.19
19+
$11.51
29+
$11.37
39+
$11.23
49+
$11.10
74+
$10.96
99+
$10.28
199+
$10.14
249+
$10.00
499+
$9.86
999+
$9.59
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 24mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 32mm |
| C | 24mm |
| Dynamic load C | 19000 N |
| Static load Co | 32500 N |
| Fatigue load limit Pu | 4000 N |
| Speed in grease | 7000 rpm |
| r1r2 min | 0.8mm |
| Da max | 27mm |
| ra max | 0.8mm |
| Inner ring | LR20x25x26.5 |
| Weight | 40 g |
