SKU: HK2526-NTN

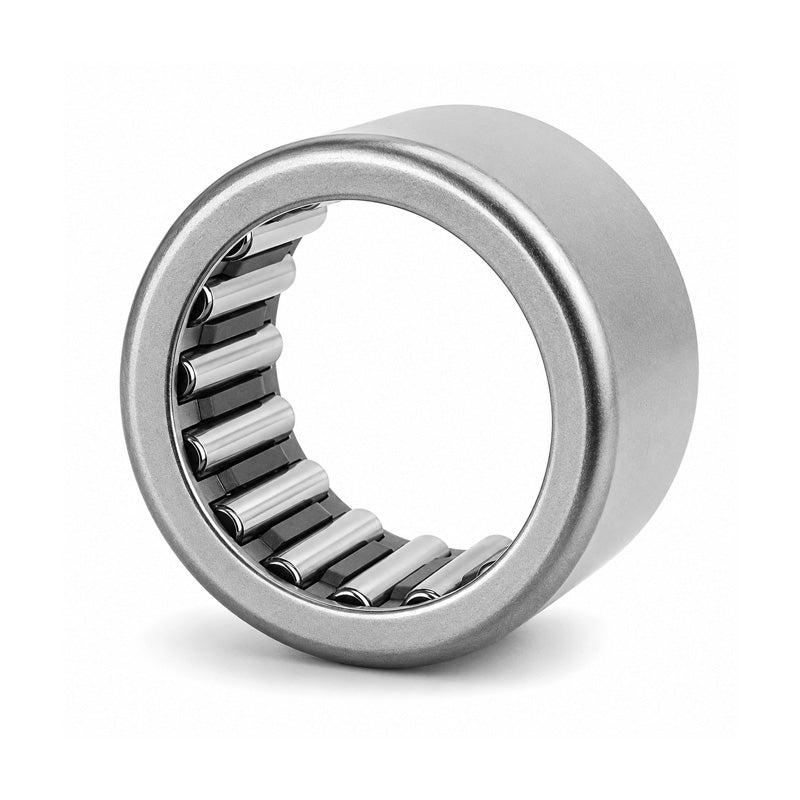

NTN HK2526 Drawn Cup Needle Roller Bearing with Open End 25x32x26mm
NTN HK2526 Drawn Cup Needle Roller Bearing with Open End 25x32x26mm
Regular price
$8.78
ex VAT
Regular price
Sale price
$8.78
ex VAT
In stock
Price Break
10+
$7.81
19+
$7.38
29+
$7.29
39+
$7.20
49+
$7.11
74+
$7.02
99+
$6.59
199+
$6.50
249+
$6.41
499+
$6.32
999+
$6.15
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 26mm
Technical
Technical
| Fw - Inside diameter | 25mm |
|---|---|
| D - Outside diameter | 32mm |
| C - Width of bearing, drawn cup or outer ring | 26mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR20X25X26.5 |
| Cr - Dynamic load rating | 26.4 kN |
| C0r - Static load rating | 46 kN |
| N - Grease lubrication limit speed | 6500 tr/min |
| N - Oil lubrication limit speed | 9500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
