SKU: HK3012F-NTN

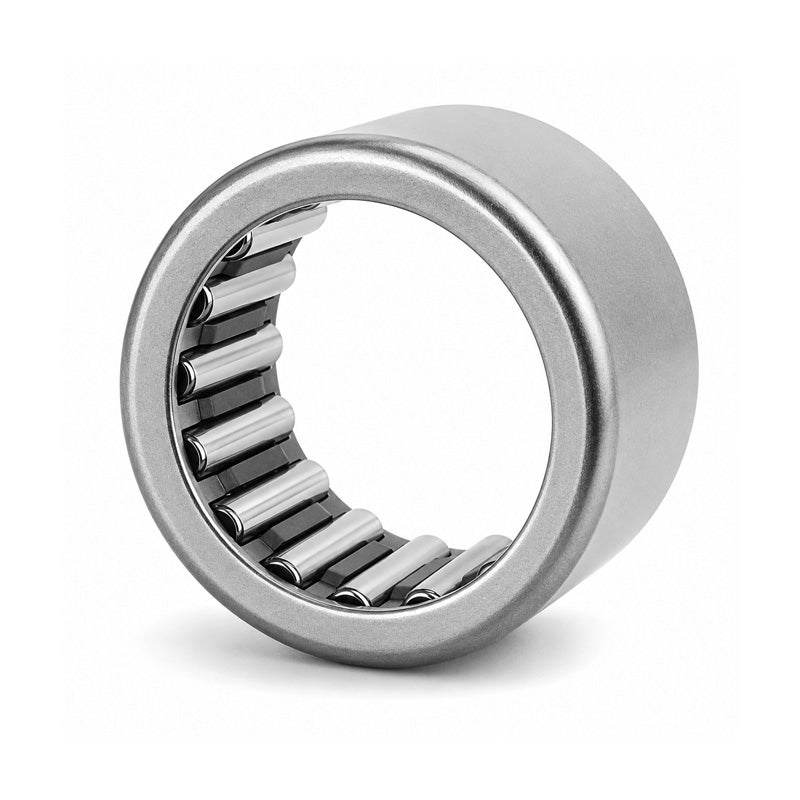

NTN HK3012F Drawn Cup Needle Roller Bearing with Open End 30x37x12mm
NTN HK3012F Drawn Cup Needle Roller Bearing with Open End 30x37x12mm
Regular price
$7.86
ex VAT
Regular price
Sale price
$7.86
ex VAT
In stock
Price Break
10+
$7.00
19+
$6.60
29+
$6.52
39+
$6.45
49+
$6.37
74+
$6.29
99+
$5.90
199+
$5.82
249+
$5.74
499+
$5.66
999+
$5.50
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 12mm
Technical
Technical
| Fw - Inside diameter | 30mm |
|---|---|
| D - Outside diameter | 37mm |
| C - Width of bearing, drawn cup or outer ring | 12mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR25X30X12.5 |
| Cr - Dynamic load rating | 12.3 kN |
| C0r - Static load rating | 18.2 kN |
| N - Grease lubrication limit speed | 5500 tr/min |
| N - Oil lubrication limit speed | 8000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
