SKU: HK3024.2RS-EU

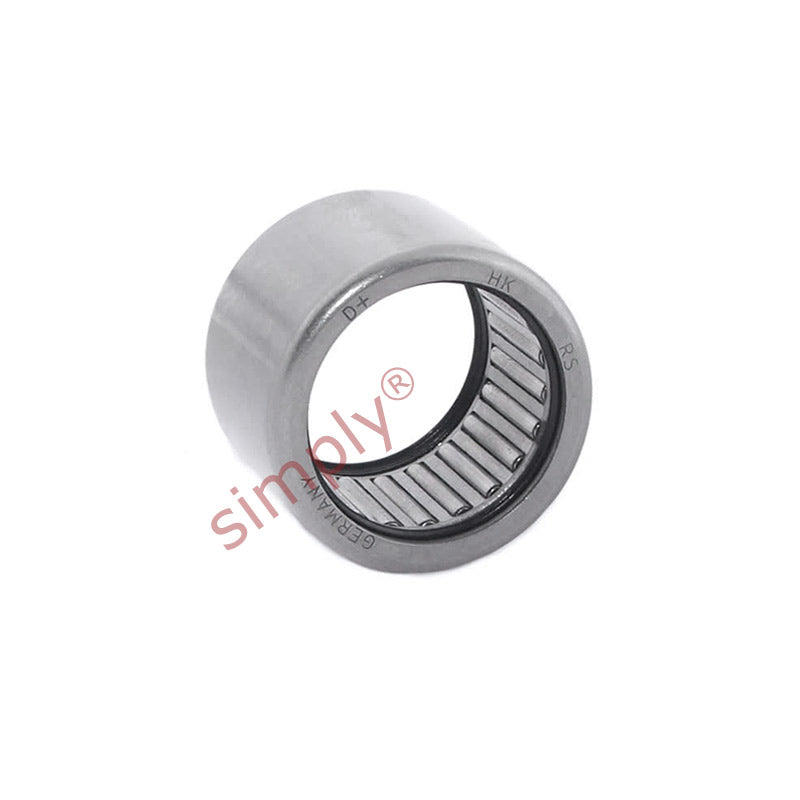

HK30242RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 30x37x24mm
HK30242RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 30x37x24mm
Regular price
$13.13
ex VAT
Regular price
Sale price
$13.13
ex VAT
In stock
Price Break
10+
$11.69
19+
$11.03
29+
$10.90
39+
$10.77
49+
$10.64
74+
$10.50
99+
$9.85
199+
$9.72
249+
$9.58
499+
$9.45
999+
$9.19
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 24mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 37mm |
| C | 24mm |
| Dynamic load C | 20900 N |
| Static load Co | 40000 N |
| Fatigue load limit Pu | 4750 N |
| Speed in grease | 6000 rpm |
| r1r2 min | 0.8mm |
| Da max | 32mm |
| ra max | 0.8mm |
| Inner ring | LR/IR25x30x26.5 |
| Weight | 44 g |
