SKU: HK3038ZWD-NTN

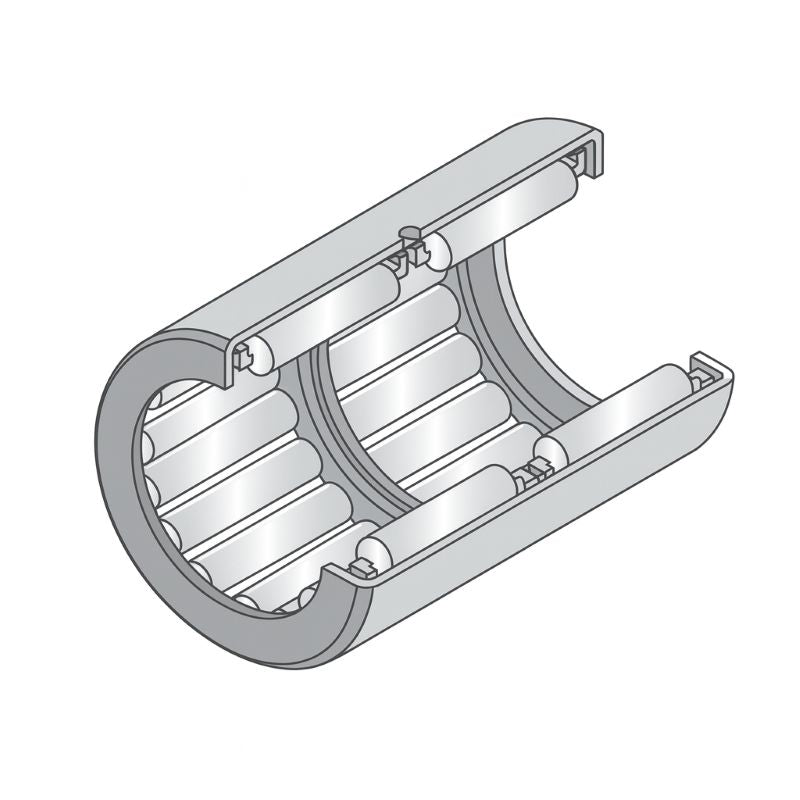

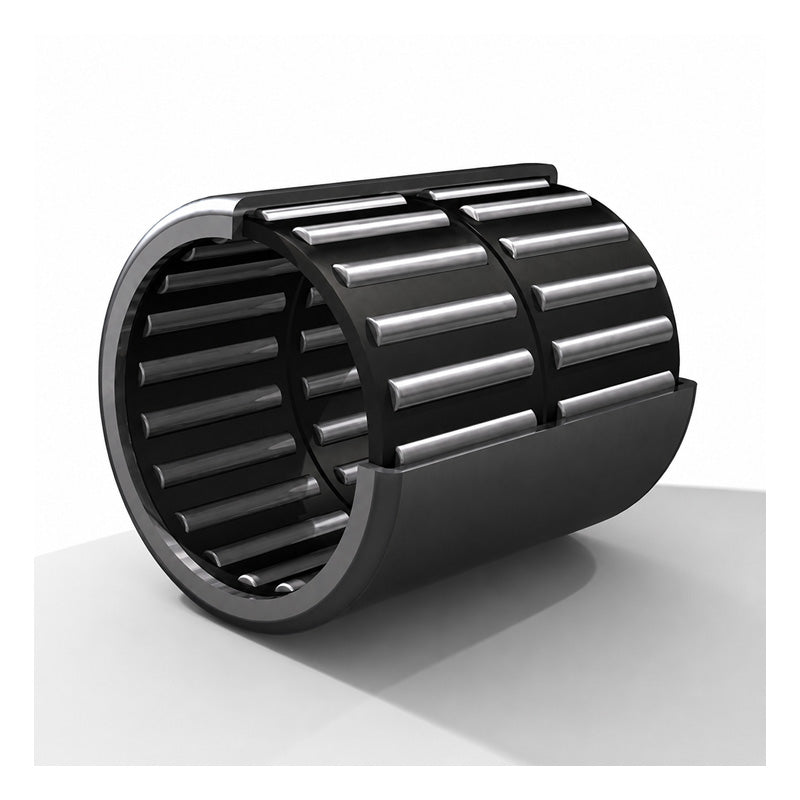

NTN HK3038ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 30x37x38mm
NTN HK3038ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 30x37x38mm
Regular price
$11.94
ex VAT
Regular price
Sale price
$11.94
ex VAT
In stock
Price Break
10+
$10.63
19+
$10.03
29+
$9.91
39+
$9.79
49+
$9.67
74+
$9.55
99+
$8.96
199+
$8.84
249+
$8.72
499+
$8.60
999+
$8.36
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 38mm
Technical
Technical
| Fw - Inside diameter | 30mm |
|---|---|
| D - Outside diameter | 37mm |
| C - Width of bearing, drawn cup or outer ring | 38mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 2.5mm |
| Inner ring reference | IR25X30X38.5 |
| Cr - Dynamic load rating | 38.5 kN |
| C0r - Static load rating | 78.5 kN |
| N - Grease lubrication limit speed | 5500 tr/min |
| N - Oil lubrication limit speed | 8000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
