SKU: HK4516-NTN

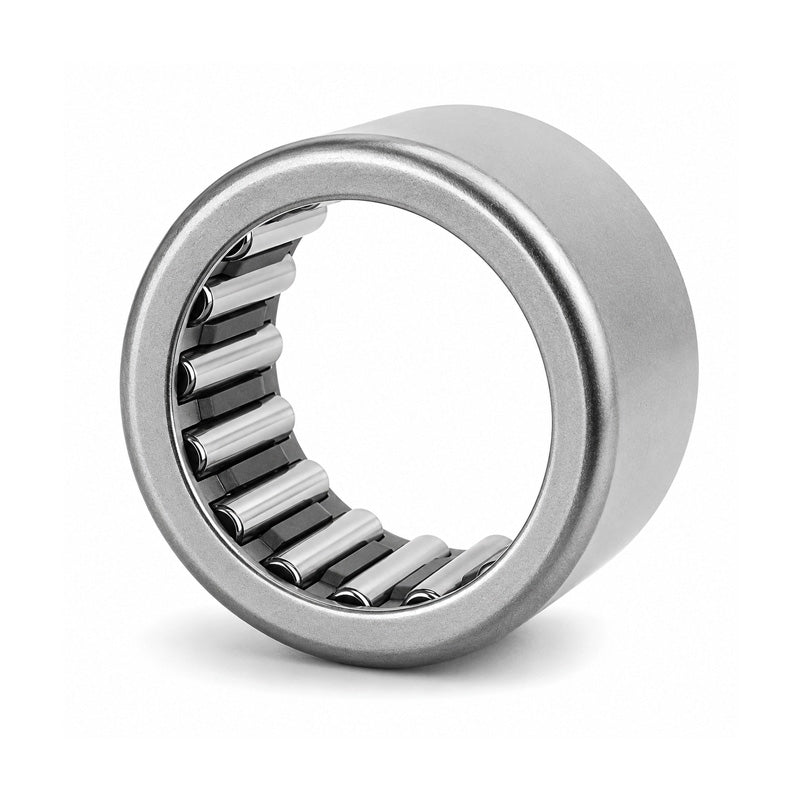

NTN HK4516 Drawn Cup Needle Roller Bearing with Open End 45x52x16mm - Allow 2-3 Days
NTN HK4516 Drawn Cup Needle Roller Bearing with Open End 45x52x16mm - Allow 2-3 Days
Regular price
$8.88
ex VAT
Regular price
Sale price
$8.88
ex VAT
In stock
Price Break
5+
$8.79
10+
$8.44
20+
$8.26
50+
$7.99
100+
$7.81
500+
$7.37
1000+
$6.22
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 52mm
- Width:
- 16mm
Technical
Technical
| Fw - Inside diameter | 45mm |
|---|---|
| D - Outside diameter | 52mm |
| C - Width of bearing, drawn cup or outer ring | 16mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR40X45X17 |
| Cr - Dynamic load rating | 21.6 kN |
| C0r - Static load rating | 43 kN |
| N - Grease lubrication limit speed | 3700 tr/min |
| N - Oil lubrication limit speed | 5500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
