SKU: HK5025-NTN

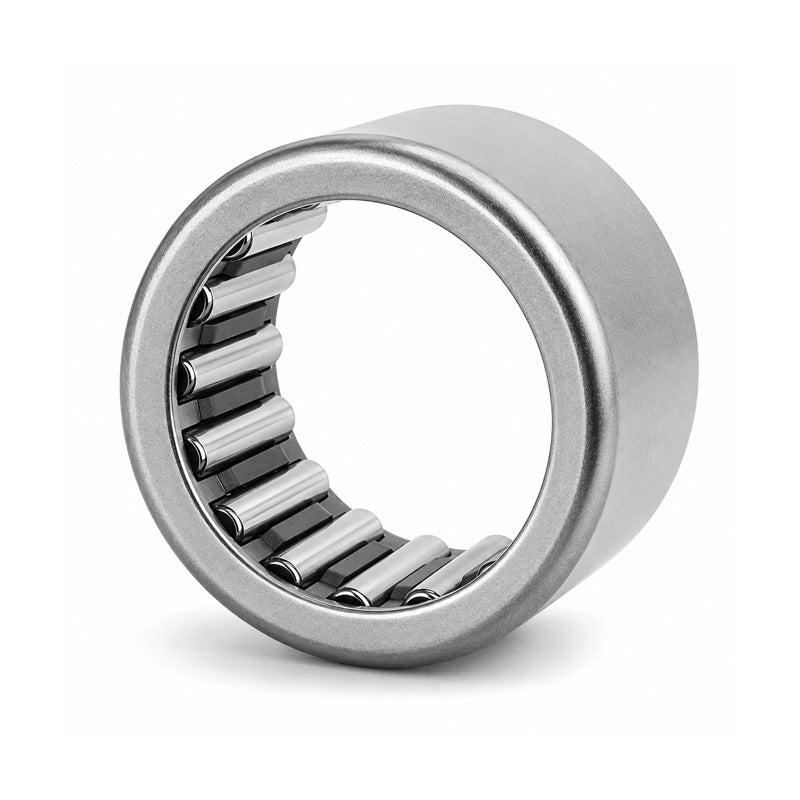

NTN HK5025 Drawn Cup Needle Roller Bearing with Open End 50x58x25mm
NTN HK5025 Drawn Cup Needle Roller Bearing with Open End 50x58x25mm
Regular price
$14.08
ex VAT
Regular price
Sale price
$14.08
ex VAT
In stock
Price Break
10+
$12.53
19+
$11.83
29+
$11.69
39+
$11.55
49+
$11.40
74+
$11.26
99+
$10.56
199+
$10.42
249+
$10.28
499+
$10.14
999+
$9.86
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 58mm
- Width:
- 25mm
Technical
Technical
| Fw - Inside diameter | 50mm |
|---|---|
| D - Outside diameter | 58mm |
| C - Width of bearing, drawn cup or outer ring | 25mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR45X50X25.5 |
| Cr - Dynamic load rating | 38.5 kN |
| C0r - Static load rating | 82 kN |
| N - Grease lubrication limit speed | 3200 tr/min |
| N - Oil lubrication limit speed | 4800 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
