SKU: HM3184-SKF

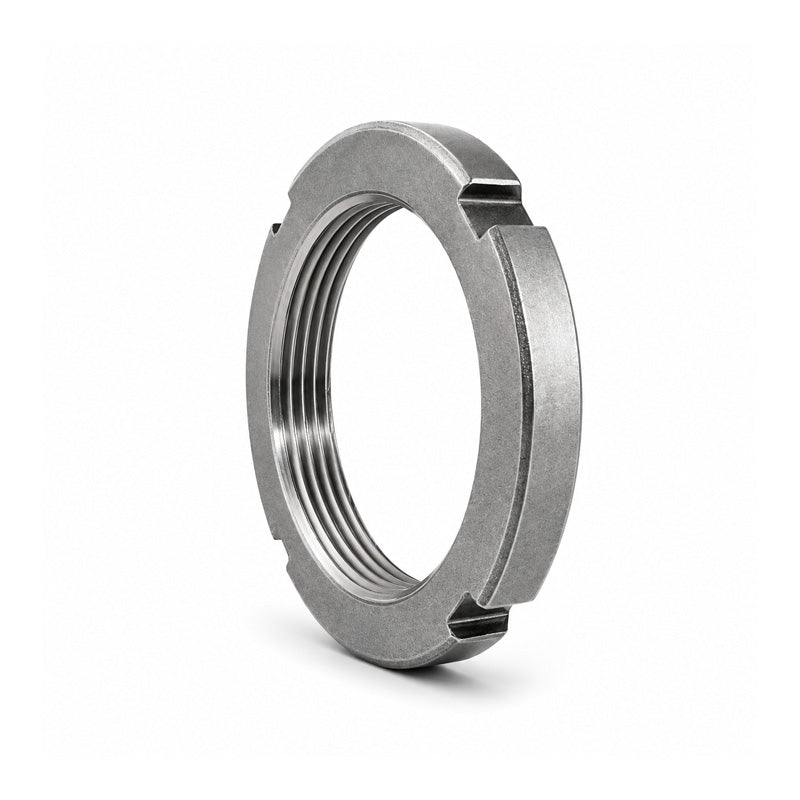

SKF HM3184 Lock Nut (Locking Clip Type) M420x5mm
SKF HM3184 Lock Nut (Locking Clip Type) M420x5mm
Regular price
$3,570.77
ex VAT
Regular price
Sale price
$3,570.77
ex VAT
In stock
Price Break
10+
$3,177.99
19+
$2,999.45
29+
$2,963.74
39+
$2,928.03
49+
$2,892.32
74+
$2,856.62
99+
$2,678.08
199+
$2,642.37
249+
$2,606.66
499+
$2,570.95
999+
$2,499.54
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M420x5
Technical
Technical
| d1 | 490mm |
|---|---|
| d2 | 460mm |
| d3 | 540mm |
| B | 70mm |
| B1 | 90mm |
| b | 32mm |
| h | 18mm |
| Weight | 45 kg |
| G | M420x5 |
| Designation | HM3184 |
| Lock nut | MS318480 |
| Spanner | TMFN 80500 |
