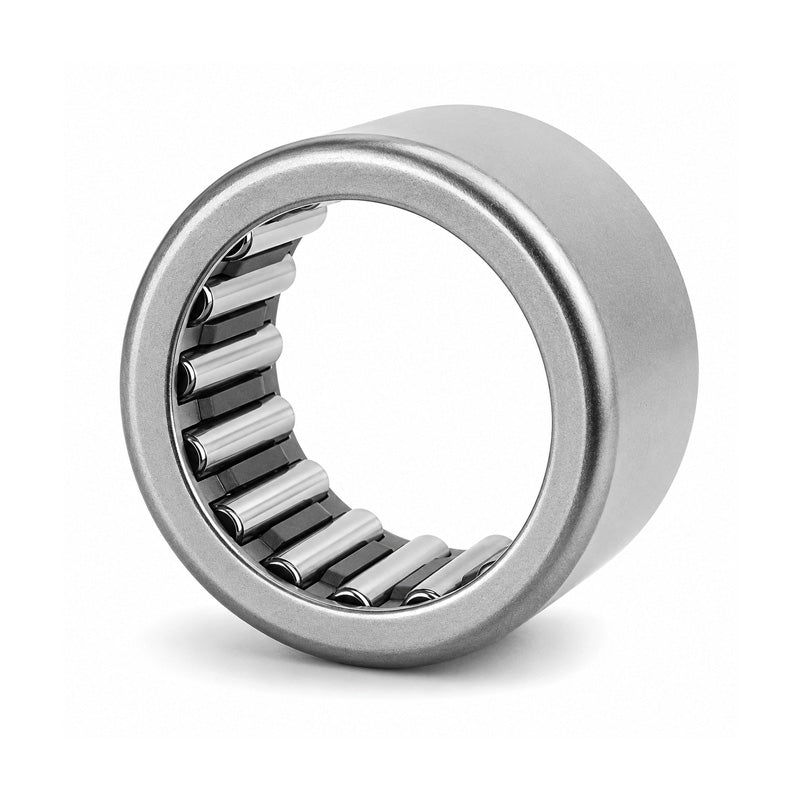

NTN HMK1512 Drawn Cup Needle Roller Bearing with Open End 15x22x12mm
NTN HMK1512 Drawn Cup Needle Roller Bearing with Open End 15x22x12mm
Regular price
$7.74
ex VAT
Regular price
Sale price
$7.74
ex VAT
In stock
Price Break
10+
$6.89
19+
$6.50
29+
$6.42
39+
$6.35
49+
$6.27
74+
$6.19
99+
$5.81
199+
$5.73
249+
$5.65
499+
$5.57
999+
$5.42
Description
Description
HMK Type Drawn Cup Needle Roller Bearings: These bearings deliver superior load capacity compared to the standard HK series, featuring a thicker outer wall (increased outer diameter) for heavy-duty performance. Characterised by a low sectional height and compact design, they are an economical solution for high-load applications. Available in both open and sealed varieties.
Benefits: Enhanced radial load rating, reinforced outer width, and space-saving design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 22mm
- Width:
- 12mm
Technical
Technical
| Fw - Inside diameter | 15mm |
|---|---|
| D - Outside diameter | 22mm |
| C - Width of bearing, drawn cup or outer ring | 12mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR12X15X12.5 |
| Cr - Dynamic load rating | 7.95 kN |
| C0r - Static load rating | 8.45 kN |
| N - Grease lubrication limit speed | 11000 tr/min |
| N - Oil lubrication limit speed | 16000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
