SKU: HMK3531LL/3AS-NTN

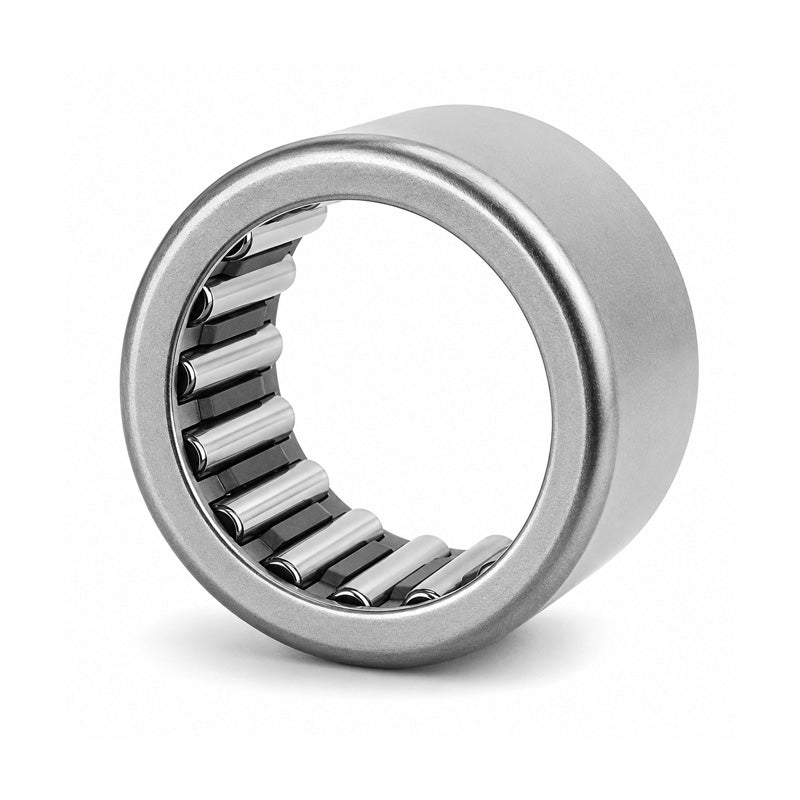

NTN HMK3531LL/3AS Drawn Cup Needle Roller Bearing with Open End 35x45x31mm - Allow 2-3 Days
NTN HMK3531LL/3AS Drawn Cup Needle Roller Bearing with Open End 35x45x31mm - Allow 2-3 Days
Regular price
$35.69
ex VAT
Regular price
Sale price
$35.69
ex VAT
In stock
Price Break
5+
$35.33
10+
$33.91
20+
$33.19
50+
$32.12
100+
$31.41
500+
$29.62
1000+
$24.98
Description
Description
HMK Type Drawn Cup Needle Roller Bearings: These bearings deliver superior load capacity compared to the standard HK series, featuring a thicker outer wall (increased outer diameter) for heavy-duty performance. Characterised by a low sectional height and compact design, they are an economical solution for high-load applications. Available in both open and sealed varieties.
Benefits: Enhanced radial load rating, reinforced outer width, and space-saving design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 45mm
- Width:
- 31mm
Technical
Technical
| Fw - Inside diameter | 35mm |
|---|---|
| D - Outside diameter | 45mm |
| C2 - Width of drawn cup LL | 31mm |
| Lubrication hole on outer ring? | No |
| Cr - Dynamic load rating | 36 kN |
| C0r - Static load rating | 54.5 kN |
| N - Grease lubrication limit speed | 4600 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
