SKU: HMV34E-BGL
BGL HMV34E Metric Hydraulic Nut M170x3 Thread - Allow 1-2 Days
BGL HMV34E Metric Hydraulic Nut M170x3 Thread - Allow 1-2 Days
Regular price
$1,851.40
ex VAT
Regular price
Sale price
$1,851.40
ex VAT
In stock
Price Break
10+
$1,647.75
19+
$1,555.18
29+
$1,536.66
39+
$1,518.15
49+
$1,499.63
74+
$1,481.12
99+
$1,388.55
199+
$1,370.04
249+
$1,351.52
499+
$1,333.01
999+
$1,295.98
Description
Description
|
BGL HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of a Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- BGL - High Quality
- Thread Size:
- M170x3
- Inside Diameter:
- 170.5mm
- Outside Diameter:
- 244mm
- Width:
- 41mm
- Flange Width:
- 7mm

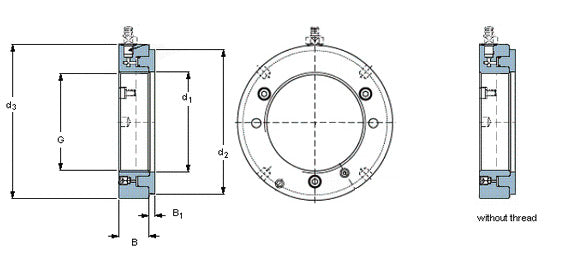

Technical
Technical
| G Thread | M170x3 |
|---|---|
| d1 | 170.5mm |
| d2 | 235mm |
| d3 | 244mm |
| B | 41mm |
| B1 | 7mm |
| Permitted piston displacement | 6mm |
| Piston area | 9400mm2 |
