SKU: HMV50E-SKF

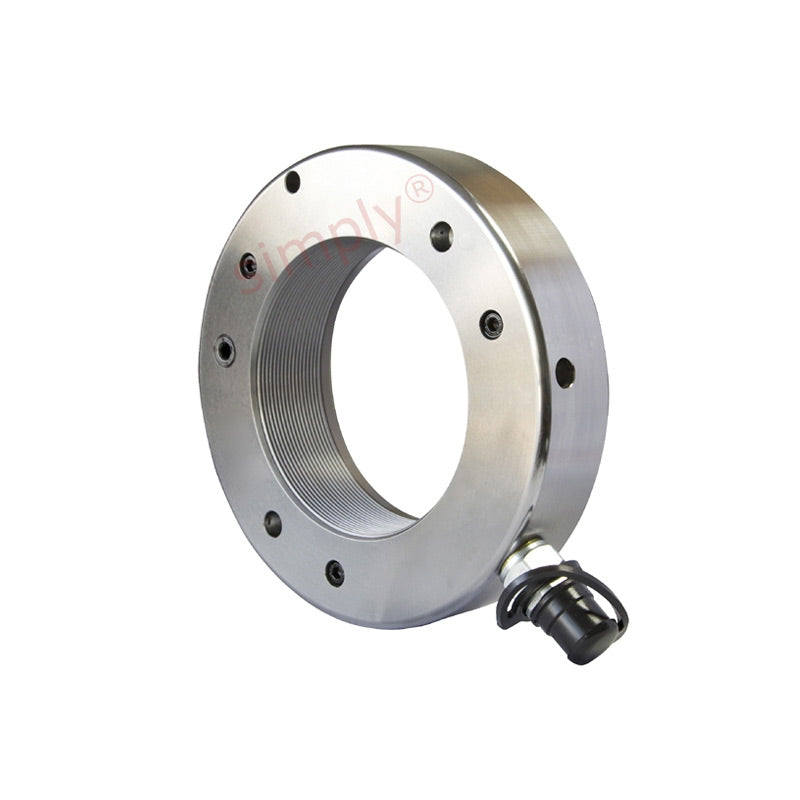

SKF HMV50E Metric Hydraulic Nut Tr250x4 Thread
SKF HMV50E Metric Hydraulic Nut Tr250x4 Thread
Regular price
$3,467.50
ex VAT
Regular price
Sale price
$3,467.50
ex VAT
In stock
Price Break
10+
$3,086.08
19+
$2,912.70
29+
$2,878.03
39+
$2,843.35
49+
$2,808.68
74+
$2,774.00
99+
$2,600.63
199+
$2,565.95
249+
$2,531.28
499+
$2,496.60
999+
$2,427.25
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| G Thread | Tr250x4 |
|---|---|
| d1 | 252 |
| d2 | 329mm |
| d3 | 342mm |
| B | 46mm |
| B1 | 9mm |
| Permitted piston displacement | 10mm |
| Piston area | 17600mm2 |
