SKU: HMV88E-BGL
BGL HMV88E Metric Hydraulic Nut Tr440x5 Thread - Allow 1-2 Days
BGL HMV88E Metric Hydraulic Nut Tr440x5 Thread - Allow 1-2 Days
Regular price
$6,527.89
ex VAT
Regular price
Sale price
$6,527.89
ex VAT
In stock
Price Break
10+
$5,809.82
19+
$5,483.43
29+
$5,418.15
39+
$5,352.87
49+
$5,287.59
74+
$5,222.31
99+
$4,895.92
199+
$4,830.64
249+
$4,765.36
499+
$4,700.08
999+
$4,569.52
Couldn't load pickup availability
Description
Description
|
BGL HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of a Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- BGL - High Quality
- Thread Size:
- Tr440x5
- Inside Diameter:
- 442mm
- Outside Diameter:
- 566mm
- Width:
- 62mm
- Flange Width:
- 12mm
Technical
Technical

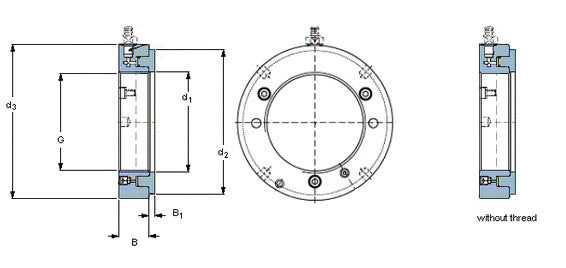

| G Thread | Tr440x5 |
|---|---|
| d1 | 442mm |
| d2 | 543mm |
| d3 | 566mm |
| B | 62mm |
| B1 | 12mm |
| Permitted piston displacement | 17mm |
| Piston area | 42500mm2 |
