SKU: JSC022MS-JUB

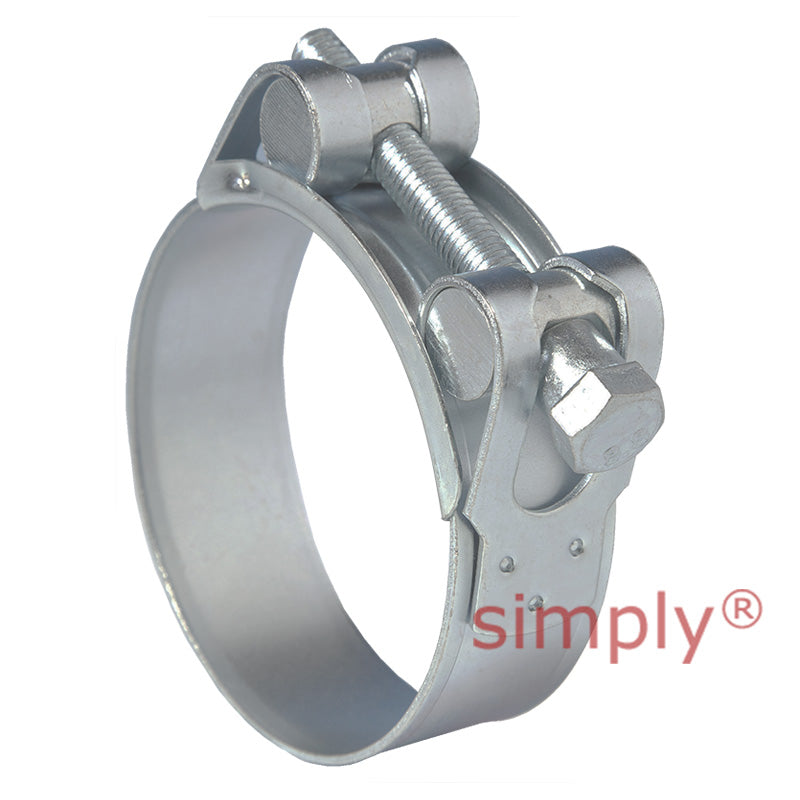

JSC022MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 20mm-22mm Band Width 18mm
JSC022MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 20mm-22mm Band Width 18mm
Regular price
$3.52
ex VAT
Regular price
Sale price
$3.52
ex VAT
In stock
Price Break
5+
$2.46
10+
$2.11
20+
$1.94
50+
$1.76
100+
$1.41
500+
$1.23
1000+
$1.06
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 18mm
- Min Adjustment Range:
- 20mm
- Max Adjustment Range:
- 22mm
Technical
Technical
| Adjustment Range | 20mm - 22mm |
|---|---|
| Band Width (+/- 0.1) | 18mm |
| Band Thickness (+/- 0.1) | 0.6mm |
| Recommended Torque | 4.5Nm |
| Maximum Torque | 6Nm |
| Screw Head | 8mm |
