SKU: JSC079MS-JUB

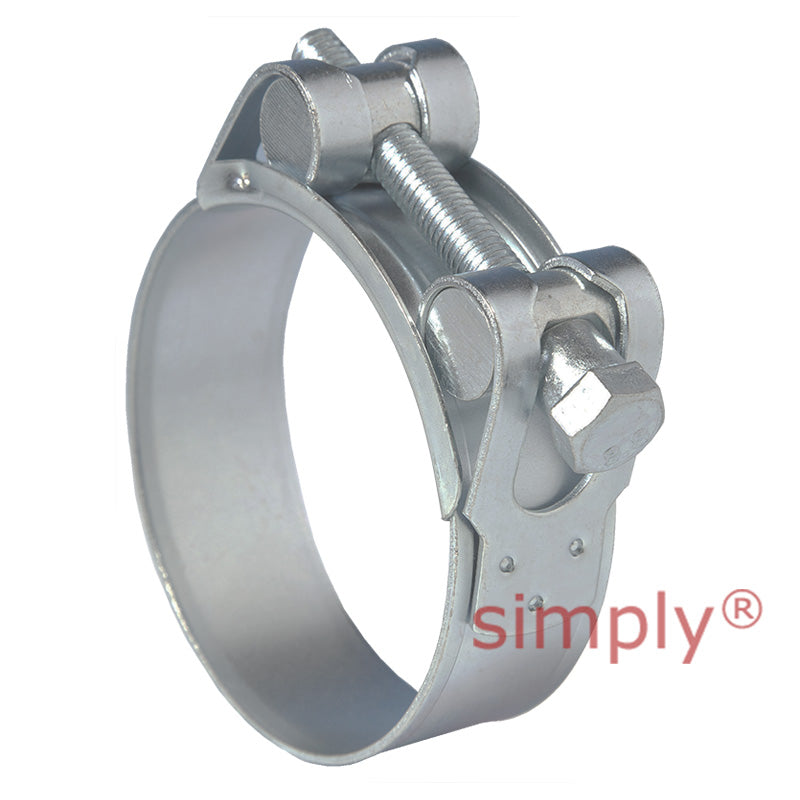

JSC079MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 74mm-79mm Band Width 25mm
JSC079MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 74mm-79mm Band Width 25mm
Regular price
$6.33
ex VAT
Regular price
Sale price
$6.33
ex VAT
Low stock
Price Break
5+
$6.27
10+
$6.01
20+
$5.89
50+
$5.70
100+
$5.57
500+
$5.25
1000+
$4.43
Couldn't load pickup availability
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 74mm
- Max Adjustment Range:
- 79mm
Technical
Technical
| Adjustment Range | 74mm - 79mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.5mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
