SKU: JSC174SS316-JUB

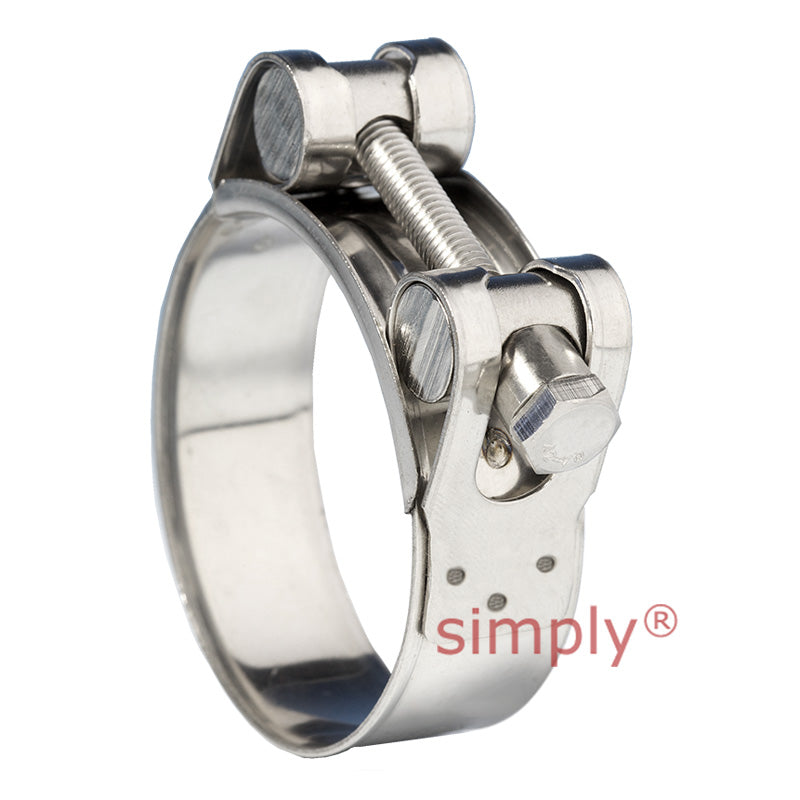

JSC174SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 162mm-174mm Band Width 25mm
JSC174SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 162mm-174mm Band Width 25mm
Regular price
$35.63
ex VAT
Regular price
Sale price
$35.63
ex VAT
In stock
Price Break
5+
$35.27
10+
$33.85
20+
$33.14
50+
$32.07
100+
$31.35
500+
$29.57
1000+
$24.94
Description
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 162mm
- Max Adjustment Range:
- 174mm
Technical
Technical
| Adjustment Range | 162mm - 174mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.5mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
