SKU: JSC200MS-JUB

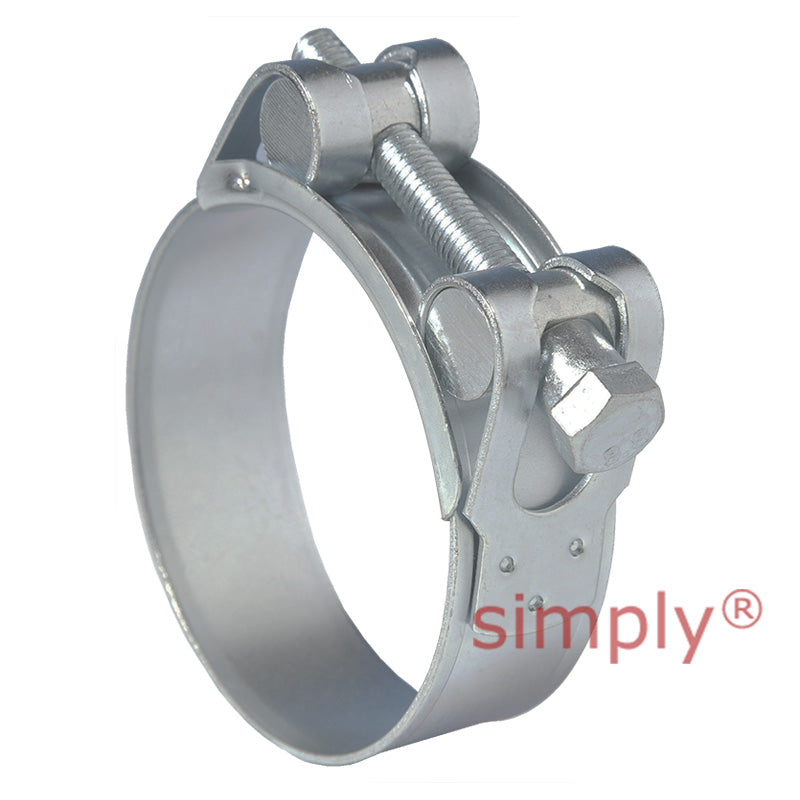

JSC200MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 188mm-200mm Band Width 25mm
JSC200MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 188mm-200mm Band Width 25mm
Regular price
$8.88
ex VAT
Regular price
Sale price
$8.88
ex VAT
In stock
Price Break
5+
$8.79
10+
$8.44
20+
$8.26
50+
$7.99
100+
$7.81
500+
$7.37
1000+
$6.22
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 188mm
- Max Adjustment Range:
- 200mm
Technical
Technical
| Adjustment Range | 188mm - 200mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.8mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
