SKU: K001

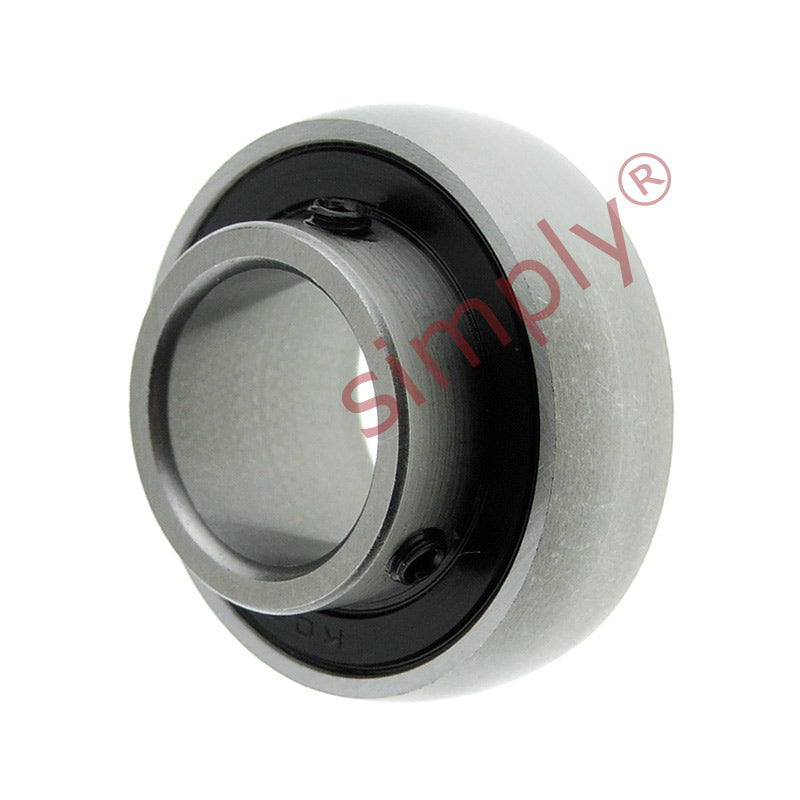

K001 Metric Grub Screw Type Bearing Insert with 12mm Bore 28mm Outside Dia
K001 Metric Grub Screw Type Bearing Insert with 12mm Bore 28mm Outside Dia
Regular price
$12.20
ex VAT
Regular price
Sale price
$12.20
ex VAT
In stock
Price Break
10+
$10.86
19+
$10.25
29+
$10.13
39+
$10.00
49+
$9.88
74+
$9.76
99+
$9.15
199+
$9.03
249+
$8.91
499+
$8.78
999+
$8.54
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Style:
- K
Technical
Technical
| Inside Diameter d | 12mm |
|---|---|
| Outside Diameter D | 28mm |
| Bi | 14.5mm |
| Be | 8mm |
| r | 0.5mm |
| n | 4mm |
| G | 3mm |
| W | 17.35mm |
| Grub screw | M3x0.35 |
| Dynamic load | 5096N ~ 519.647 kgf |
| Static load | 2401N ~ 244.834 kgf |
| Weight | 0.03 kg |
