SKU: K12x16x13TV-INA

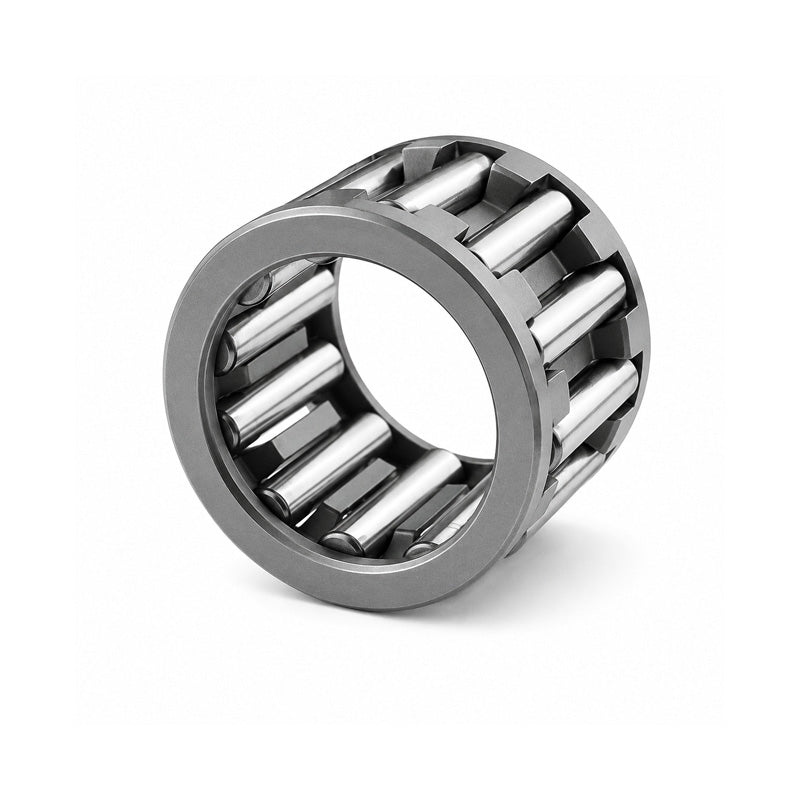

INA K12x16x13TN Needle Roller Cage Assembly 12x16x13mm
INA K12x16x13TN Needle Roller Cage Assembly 12x16x13mm
Regular price
$7.45
ex VAT
Regular price
Sale price
$7.45
ex VAT
Equivalent to: K12x16x13TN
In stock
Price Break
5+
$7.38
10+
$7.08
20+
$6.93
50+
$6.71
100+
$6.56
500+
$6.18
1000+
$5.22
Couldn't load pickup availability
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: K12x16x13TN
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 16mm
- Width:
- 13mm
Technical
Technical
| Fw | 12mm |
|---|---|
| Ew | 16mm |
| U | 13mm |
| Dynamic load | 7650 N |
| Static load | 9500 N |
| Fatigue load limit Pu | 1100 N |
| Speed in grease | 17000 rpm |
| Speed in oil | 26000 rpm |
| Seal | G12x16x3 |
| Weight | 3.6 g |
