SKU: KB30-INA

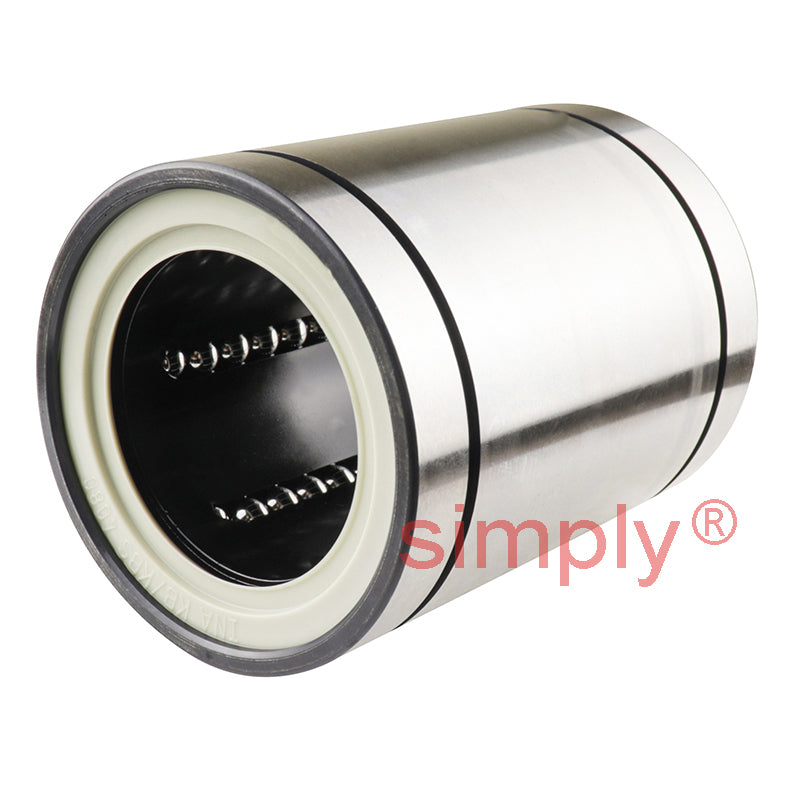

INA KB30 Closed Linear Ball Bushing with Gap Seals 30x47x68mm
INA KB30 Closed Linear Ball Bushing with Gap Seals 30x47x68mm
Regular price
$119.03
ex VAT
Regular price
Sale price
$119.03
ex VAT
In stock
Price Break
10+
$105.94
19+
$99.99
29+
$98.79
39+
$97.60
49+
$96.41
74+
$95.22
99+
$89.27
199+
$88.08
249+
$86.89
499+
$85.70
999+
$83.32
Description
Description
|
INA KB Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 68mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 47mm |
| L | 68mm |
| Numer of rows of balls | 6 |
| BL2 | 1.85mm |
| DN | 44.5mm |
| L2 | 51.7mm |
| Mass | 0.3 kg |
| Basic dynamic load rating C min | 3600 N |
| Basic static load rating C0 min | 2850 N |
| Basic dynamic load rating C max | 3800 N |
| Basic static load rating C0 max | 3600 N |
