SKU: KBS30-INA

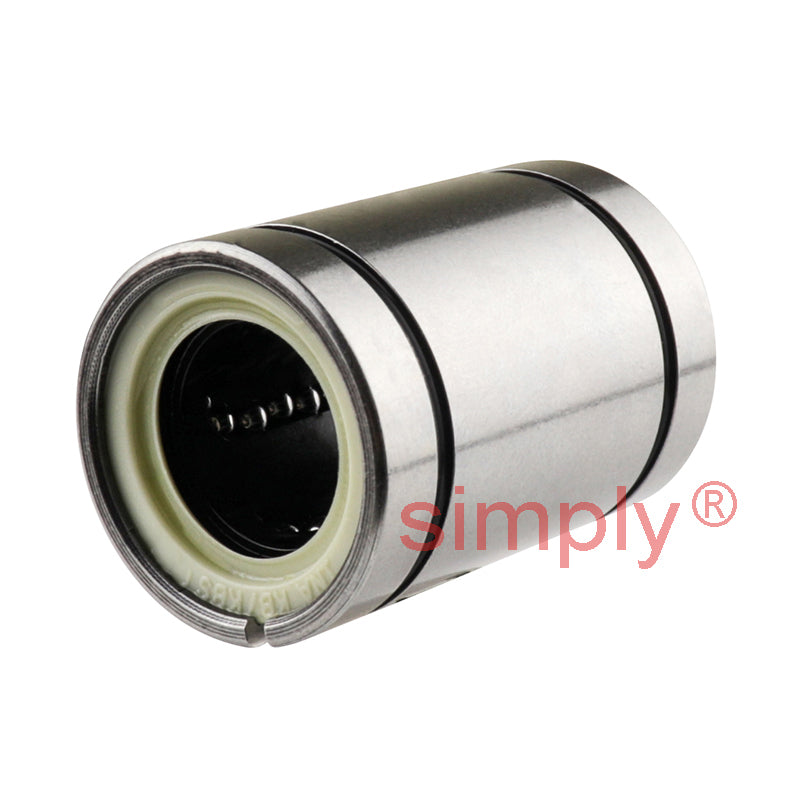

INA KBS30 Linear Ball Bushing 30x47x68mm
INA KBS30 Linear Ball Bushing 30x47x68mm
Regular price
$127.30
ex VAT
Regular price
Sale price
$127.30
ex VAT
In stock
Price Break
10+
$113.30
19+
$106.93
29+
$105.66
39+
$104.39
49+
$103.11
74+
$101.84
99+
$95.48
199+
$94.20
249+
$92.93
499+
$91.66
999+
$89.11
Description
Description
|
INA KBS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 68mm
Technical
Technical

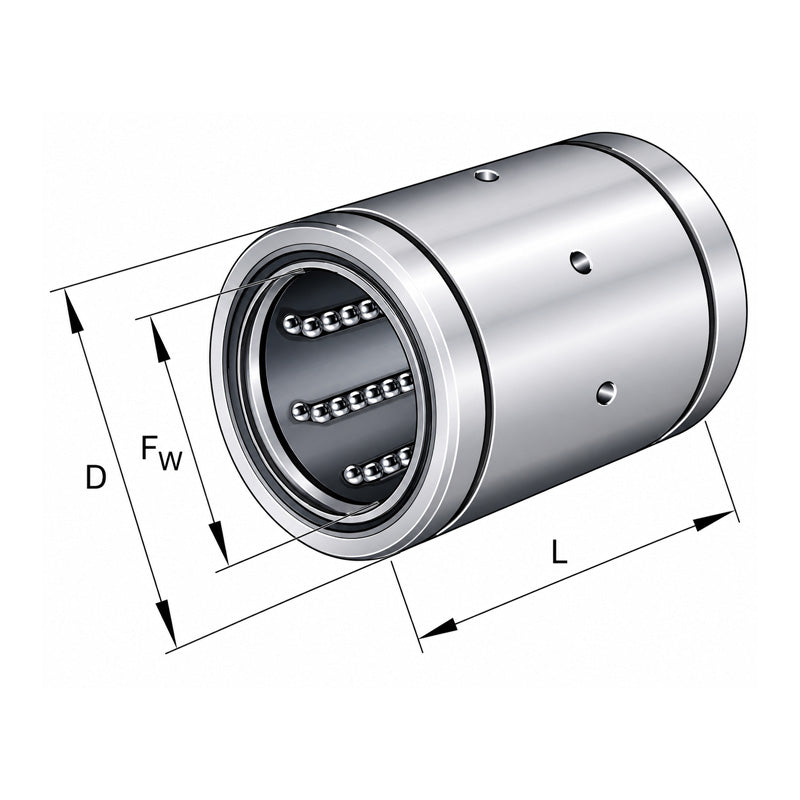

| Fw | 30mm |
|---|---|
| D | 47mm |
| L | 68mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.85mm |
| DN | 44.5mm |
| L2 | 51.7mm |
| Mass | 0.3 kg |
| Basic dynamic load rating C min | 3600 N |
| Basic static load rating C0 min | 2850 N |
| Basic dynamic load rating C max | 3800 N |
| Basic static load rating C0 max | 3600 N |
