SKU: KBS30-PP-AS-INA

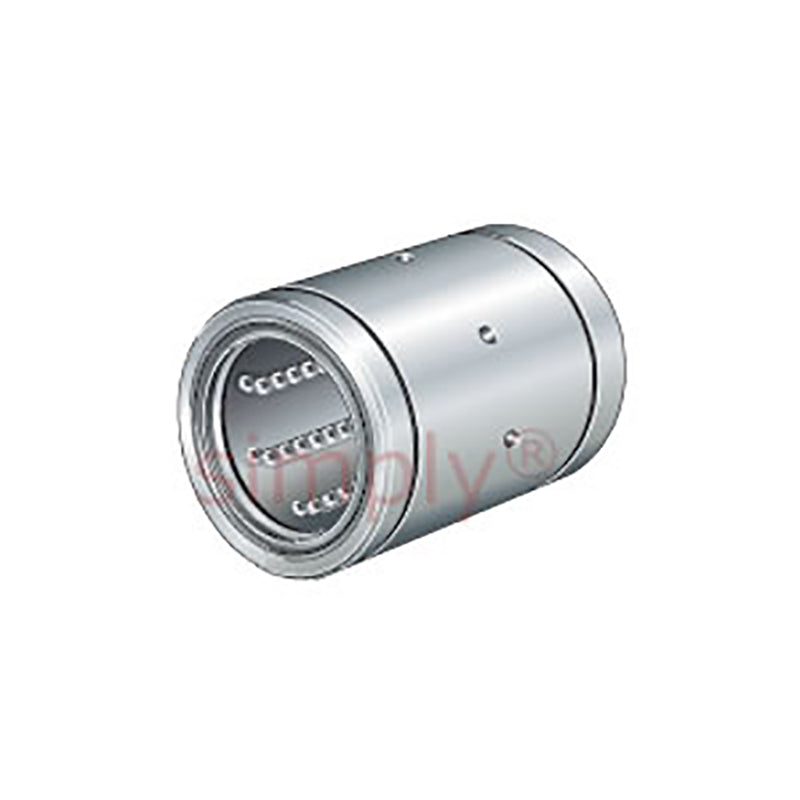

INA KBS30PPAS Relubricatable Linear Ball Bushing with Contact Seals 30x47x68mm
INA KBS30PPAS Relubricatable Linear Ball Bushing with Contact Seals 30x47x68mm
Regular price
$144.43
ex VAT
Regular price
Sale price
$144.43
ex VAT
In stock
Price Break
10+
$128.54
19+
$121.32
29+
$119.88
39+
$118.43
49+
$116.99
74+
$115.54
99+
$108.32
199+
$106.88
249+
$105.43
499+
$103.99
999+
$101.10
Description
Description
|
INA KBS..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 68mm
Technical
Technical

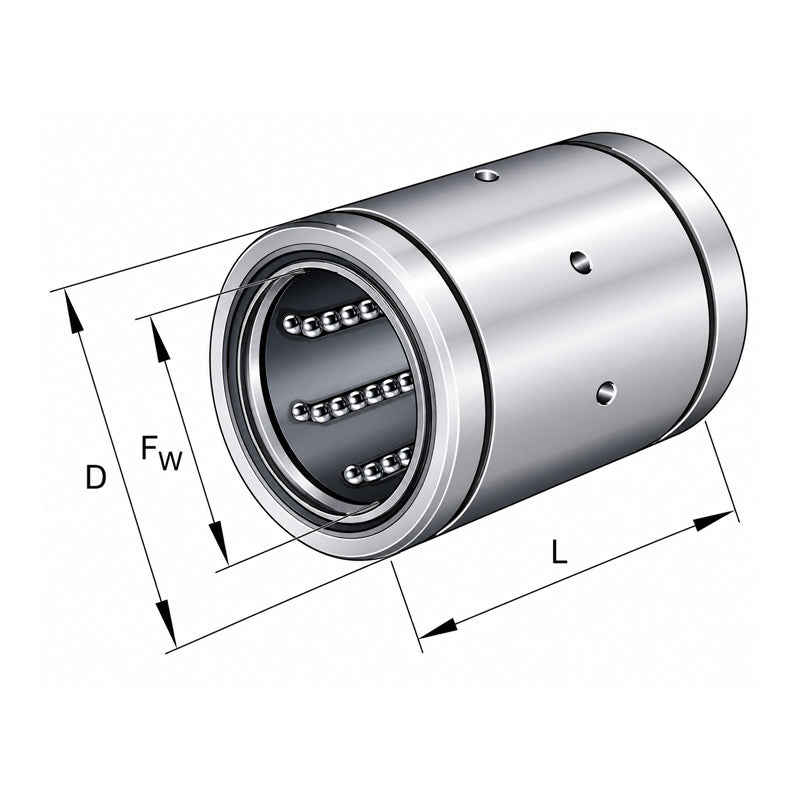

| Fw | 30mm |
|---|---|
| D | 47mm |
| L | 68mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.85mm |
| DN | 44.5mm |
| L2 | 51.7mm |
| Mass | 0.3 kg |
| Basic dynamic load rating C min | 3600 N |
| Basic static load rating C0 min | 2850 N |
| Basic dynamic load rating C max | 3800 N |
| Basic static load rating C0 max | 3600 N |
