SKU: KBZ06-INA

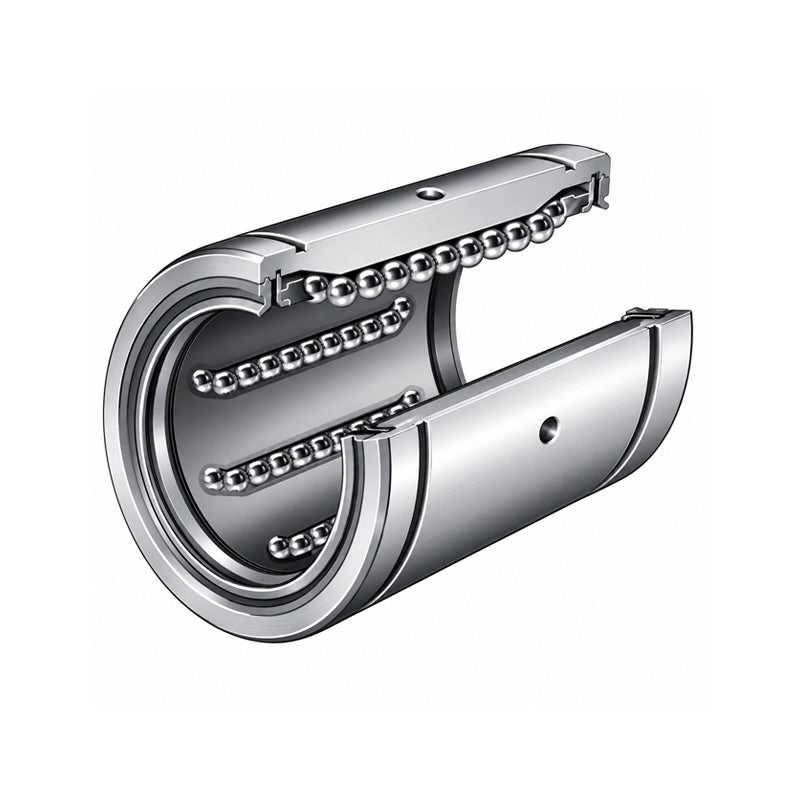

INA KBZ06 Imperial Linear Ball Bushing 3/8x5/8x7/8 inch - Allow 2-3 Days
INA KBZ06 Imperial Linear Ball Bushing 3/8x5/8x7/8 inch - Allow 2-3 Days
Regular price
$59.44
ex VAT
Regular price
Sale price
$59.44
ex VAT
In stock
Price Break
5+
$58.85
10+
$56.47
20+
$55.28
50+
$53.50
100+
$52.31
500+
$49.34
1000+
$41.61
Description
Description
|
INA KBZ Imperial Linear Ball Bearings: Linear ball bearings of the machined range KBZ and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 9.53mm = 3/8 inch
- Outside Diameter:
- 15.88mm = 5/8 inch
- Width:
- 22.23mm = 7/8 inch
Technical
Technical
| d | 3/8 inch |
|---|---|
| D | 5/8 inch |
| C | 7/8 inch |
| C1 | 0.636 inch |
| C7 | 0.039 inch |
| D1 | 0.588 inch |
| Mass | 0.03 lbs |
| Number of rows of balls | 4? |
| Basic dynamic load rating C | 51 lbf |
| Basic static load rating C0 | 71 lbf |
