SKU: KBZ10-MB

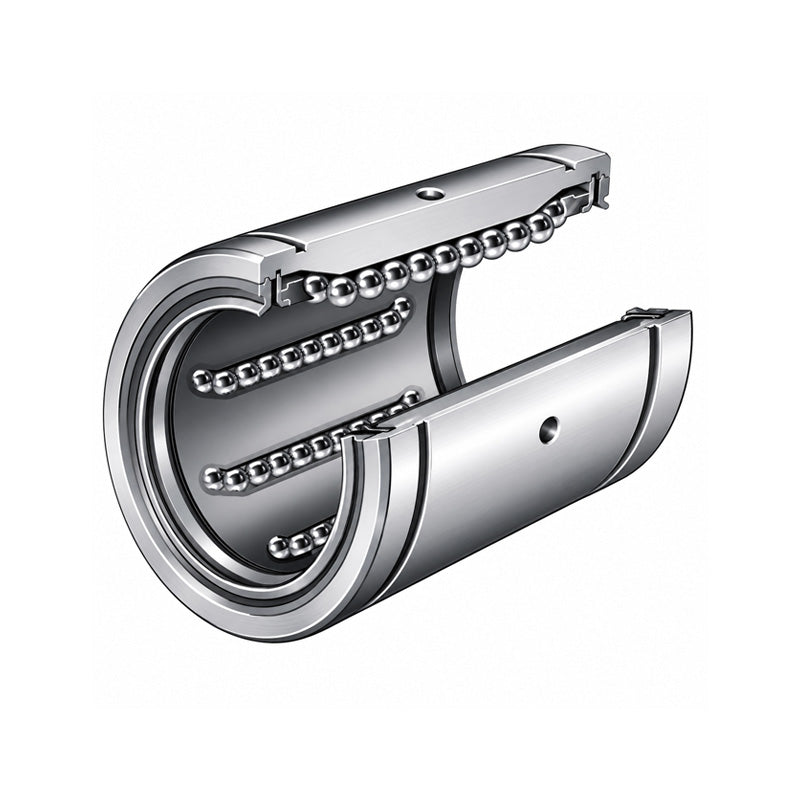

Major Brand KBZ10 Imperial Linear Ball Bushing 5/8x1-1/8x1-1/2 inch
Major Brand KBZ10 Imperial Linear Ball Bushing 5/8x1-1/8x1-1/2 inch
Regular price
$29.85
ex VAT
Regular price
Sale price
$29.85
ex VAT
In stock
Price Break
10+
$26.57
19+
$25.07
29+
$24.78
39+
$24.48
49+
$24.18
74+
$23.88
99+
$22.39
199+
$22.09
249+
$21.79
499+
$21.49
999+
$20.90
Description
Description
|
INA KBZ Imperial Linear Ball Bearings: Linear ball bearings of the machined range KBZ and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15.88mm = 5/8 inch
- Outside Diameter:
- 28.58mm = 1-1/8 inch
- Width:
- 38.10mm = 1-1/2 inch
Technical
Technical
| d | 5/8 inch |
|---|---|
| D | 1-1/8 inch |
| C | 1-1/2 inch |
| C1 | 1.104 inch |
| C7 | 0.056 inch |
| D1 | 1.059 inch |
| Mass | 0.17 lbs |
| Number of rows of balls | 4? |
| Basic dynamic load rating C | 174 lbf |
| Basic static load rating C0 | 265 lbf |
