KFL004 Aluminium 2 Bolt Oval Bearing with Grub Screws 20mm Bore
KFL004 Aluminium 2 Bolt Oval Bearing with Grub Screws 20mm Bore
Regular price
$11.19
ex VAT
Regular price
Sale price
$11.19
ex VAT
In stock
Price Break
10+
$9.96
19+
$9.40
29+
$9.29
39+
$9.18
49+
$9.06
74+
$8.95
99+
$8.39
199+
$8.28
249+
$8.17
499+
$8.06
999+
$7.83
Description
Description
|

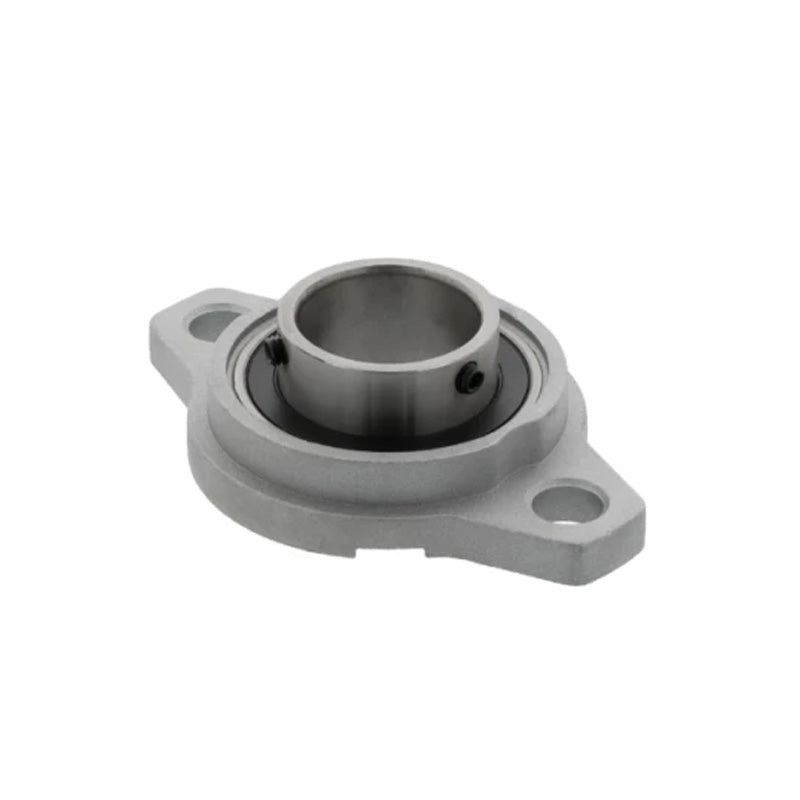

KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- KFL
- Bolt Hole Centres:
- 71mm
Technical
Technical
| d | 20mm |
|---|---|
| a | 90mm |
| e | 71mm |
| g | 8mm |
| l | 16mm |
| N | 10mm |
| b | 55mm |
| n | 6mm |
| Bi | 21mm |
| t | 26.5mm |
| z | 23mm |
| Recommended fixing screw | M8 |
| Weight | 0.23 kg |
| Dynamic load | 9359 N ~ 954.352 kgf |
| Static load | 5047 N ~ 514.651 kgf |
