SKU: KFL006

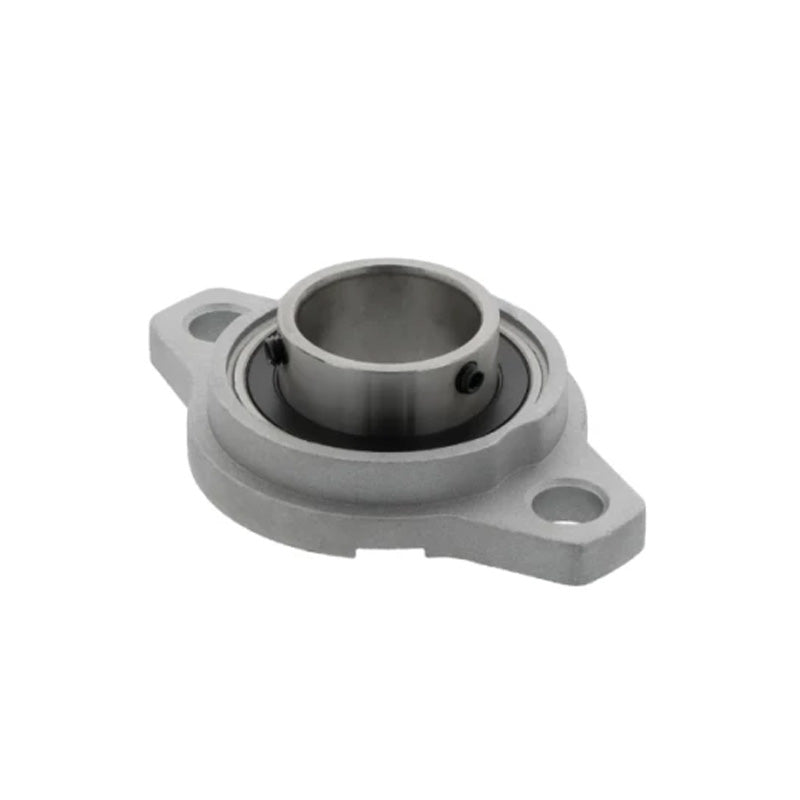

KFL006 Aluminium 2 Bolt Oval Bearing with Grub Screws 30mm Bore
KFL006 Aluminium 2 Bolt Oval Bearing with Grub Screws 30mm Bore
Regular price
$11.49
ex VAT
Regular price
Sale price
$11.49
ex VAT
In stock
Price Break
10+
$10.23
19+
$9.65
29+
$9.54
39+
$9.42
49+
$9.31
74+
$9.19
99+
$8.62
199+
$8.50
249+
$8.39
499+
$8.27
999+
$8.04
Description
Description
|
KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- KFL
- Bolt Hole Centres:
- 85mm
Technical
Technical
| d | 30mm |
|---|---|
| a | 112mm |
| e | 85mm |
| g | 9mm |
| l | 16mm |
| N | 13mm |
| b | 70mm |
| n | 6.5mm |
| Bi | 24.5mm |
| t | 30.5mm |
| z | 27mm |
| Recommended fixing screw | M10 |
| Weight | 0.39 kg |
| Dynamic load | 13230 N ~ 1349.085 kgf |
| Static load | 8281 N ~ 844.427 kgf |
