SKU: KH12-KBS

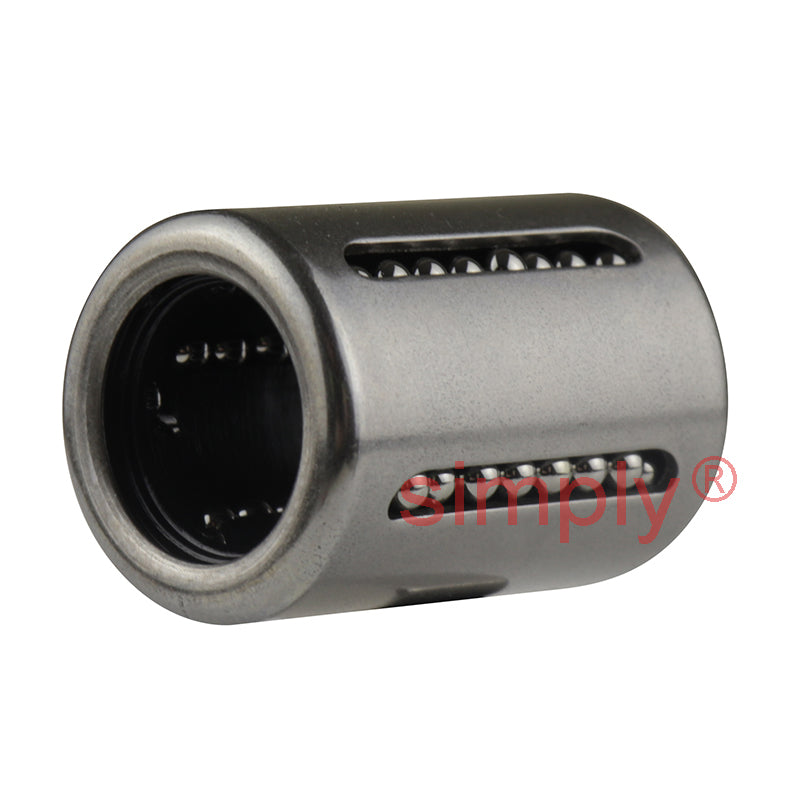

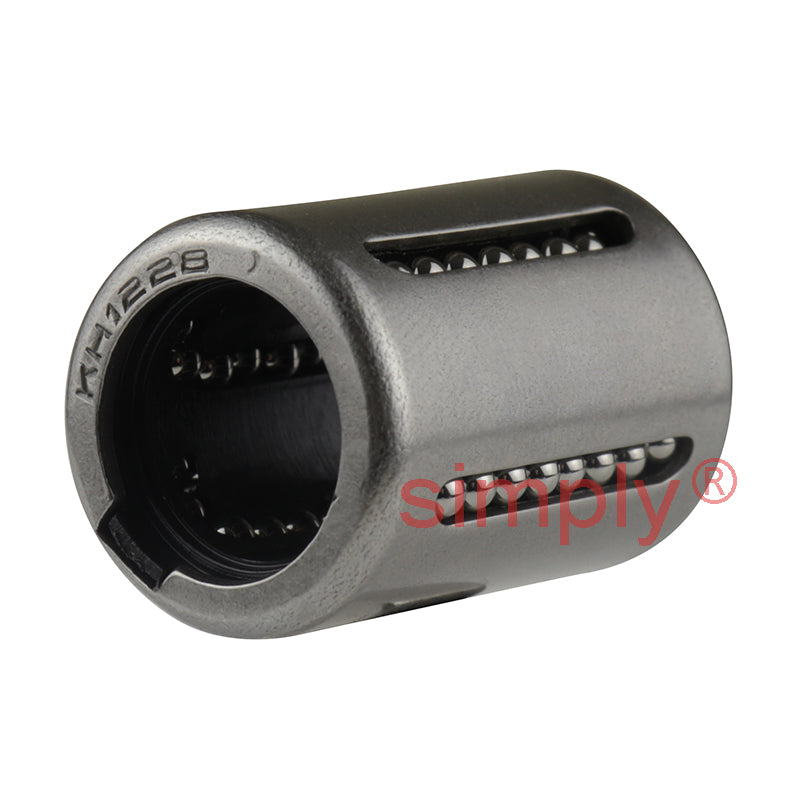

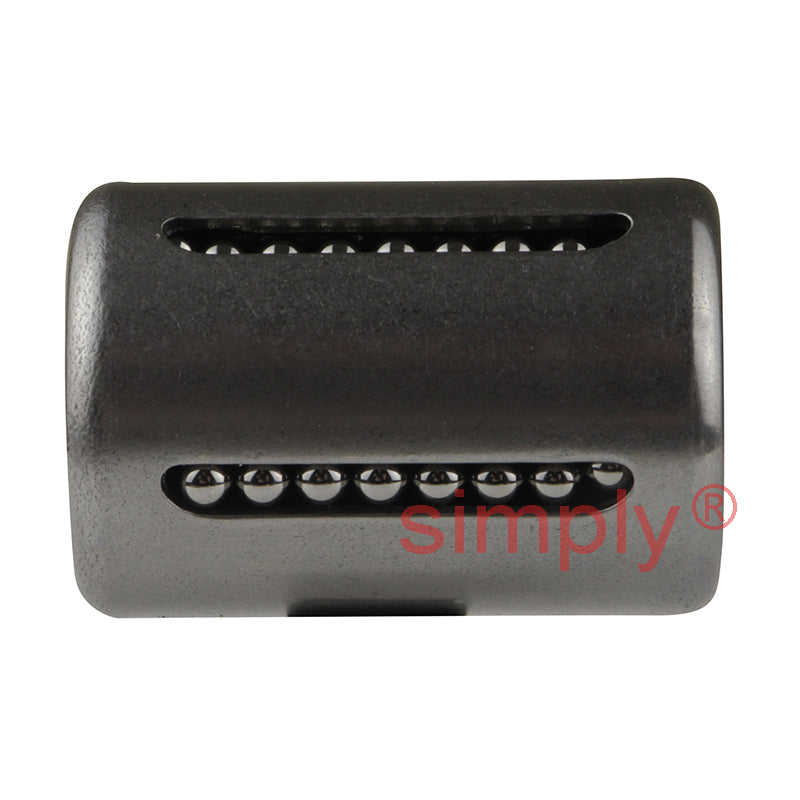

Budget KH12 Relubricatable Closed Linear Ball Bushing 12x19x28mm
Budget KH12 Relubricatable Closed Linear Ball Bushing 12x19x28mm
Regular price
$12.80
ex VAT
Regular price
Sale price
$12.80
ex VAT
In stock
Price Break
10+
$11.39
19+
$10.75
29+
$10.62
39+
$10.50
49+
$10.37
74+
$10.24
99+
$9.60
199+
$9.47
249+
$9.34
499+
$9.22
999+
$8.96
Description
Description
INA KH Linear Ball Bearings: These compact range linear ball bearings have a small radial design envelope and are particularly economical. The low radial section height makes them ideal for applications in which only a small amount of radial space is available. KH linear ball bearings have a closed design, making them suitable for use on shafts. The bearings are maintenance-free for many applications due to the initial greasing with a high quality grease. If necessary, they can be relubricated via the openings in the outer ring. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C.
Benefits: Economical, maintenance-free, relubricatable, suitable for applications with a small amount of available radial space.
Benefits: Economical, maintenance-free, relubricatable, suitable for applications with a small amount of available radial space.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 19mm
- Length:
- 28mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 19mm |
| L | 28mm |
| JL4 | 6mm |
| N2 | 2.5mm |
| Mass | 0.0185 kg |
| Basic dynamic load rating | 670 N |
| Basic static load rating C0 min | 510 N |
| Basic dynamic load rating C max | 800 N |
| Basic static load rating C0 max | 740 N |
