SKU: KMFE10-SKF

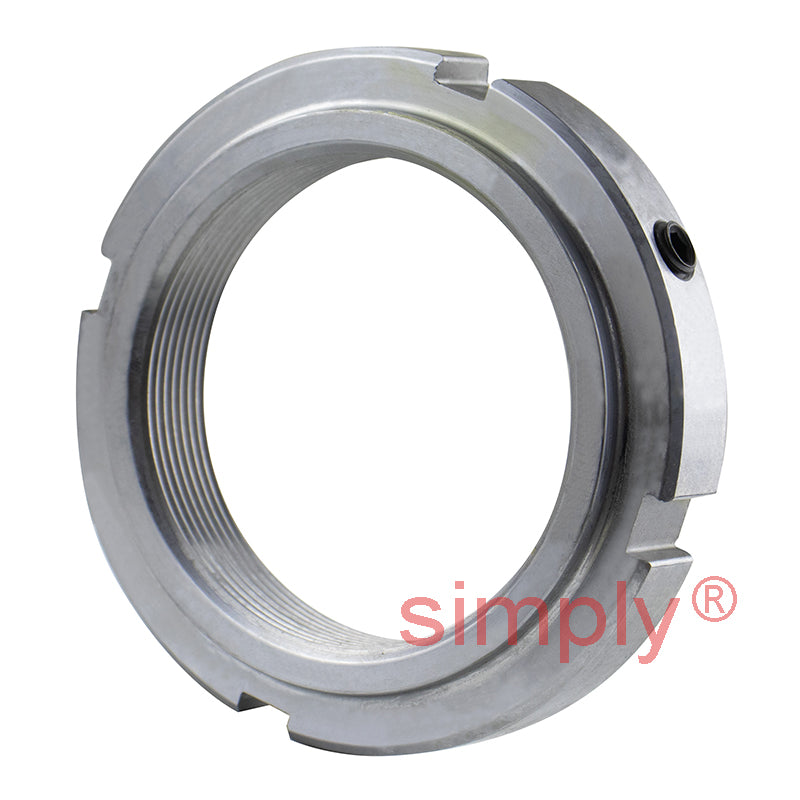

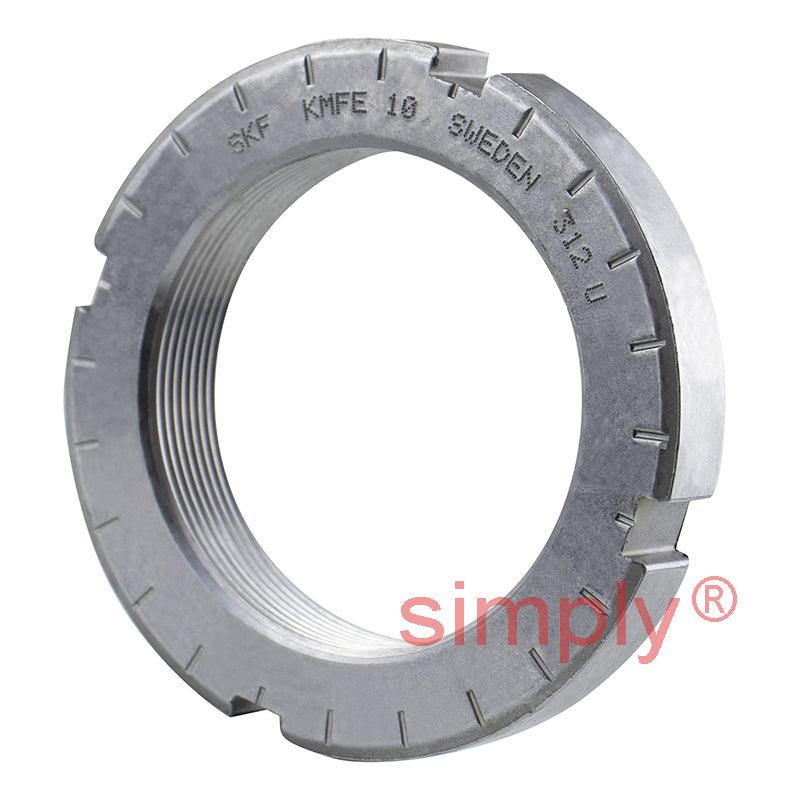

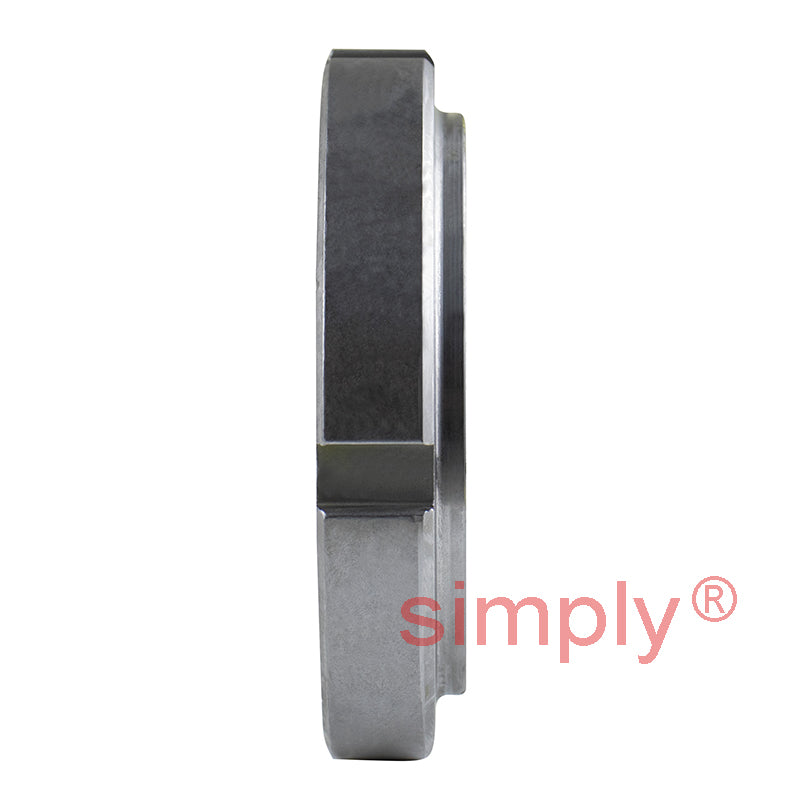

SKF KMFE10 Lock Nut with Locking Screw M50x1.5mm
SKF KMFE10 Lock Nut with Locking Screw M50x1.5mm
Regular price
$48.42
ex VAT
Regular price
Sale price
$48.42
ex VAT
In stock
Price Break
10+
$43.09
19+
$40.67
29+
$40.19
39+
$39.70
49+
$39.22
74+
$38.74
99+
$36.32
199+
$35.83
249+
$35.35
499+
$34.86
999+
$33.89
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M50x1.5
Technical
Technical
| d1 | 57.5mm |
|---|---|
| d3 | 70mm |
| B | 14mm |
| B1 | 11mm |
| b | 6mm |
| h | 2.5mm |
| Axial load capacity | 91.5 kN |
| Looseing torque | 100 Nm |
| Weight | 0.16 kg |
| G | M50x1.5 |
| Designation | KMFE10 |
| Spanner | HN10 |
| Grub | M6 |
| Screw tightening torque | 8 Nm |
