SKU: KMFE15-SKF

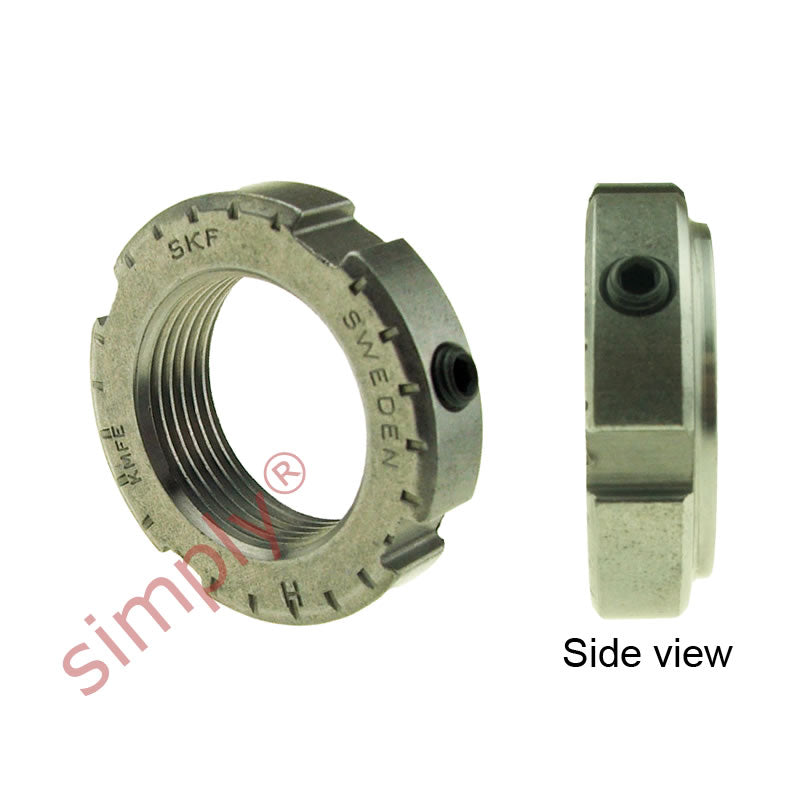

SKF KMFE15 Lock Nut with Locking Screw M75x2mm
SKF KMFE15 Lock Nut with Locking Screw M75x2mm
Regular price
$87.89
ex VAT
Regular price
Sale price
$87.89
ex VAT
In stock
Price Break
5+
$87.01
10+
$83.50
20+
$81.74
50+
$79.10
100+
$77.34
500+
$72.95
1000+
$61.52
Couldn't load pickup availability
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M75x2
Technical
Technical
| d1 | 85mm |
|---|---|
| d3 | 98mm |
| B | 16mm |
| B1 | 13mm |
| b | 8mm |
| h | 3.5mm |
| Axial load capacity | 134 kN |
| Looseing torque | 150 Nm |
| Weight | 0.32 kg |
| G | M75x2 |
| Designation | KMFE15 |
| Spanner | HN15 |
| Grub | M6 |
| Screw tightening torque | 8 Nm |
