SKU: KMFE18-SKF

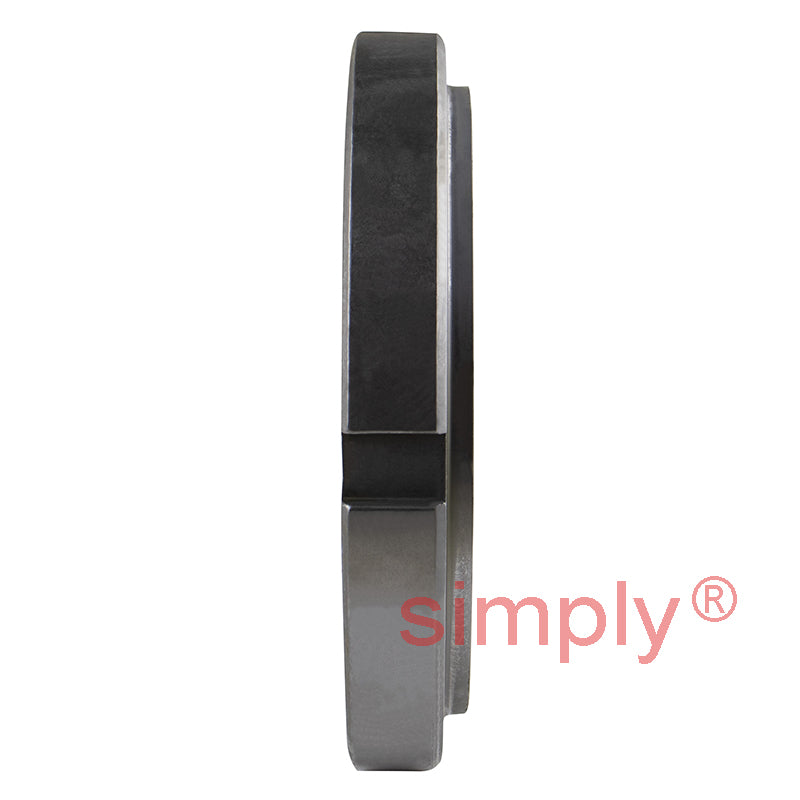

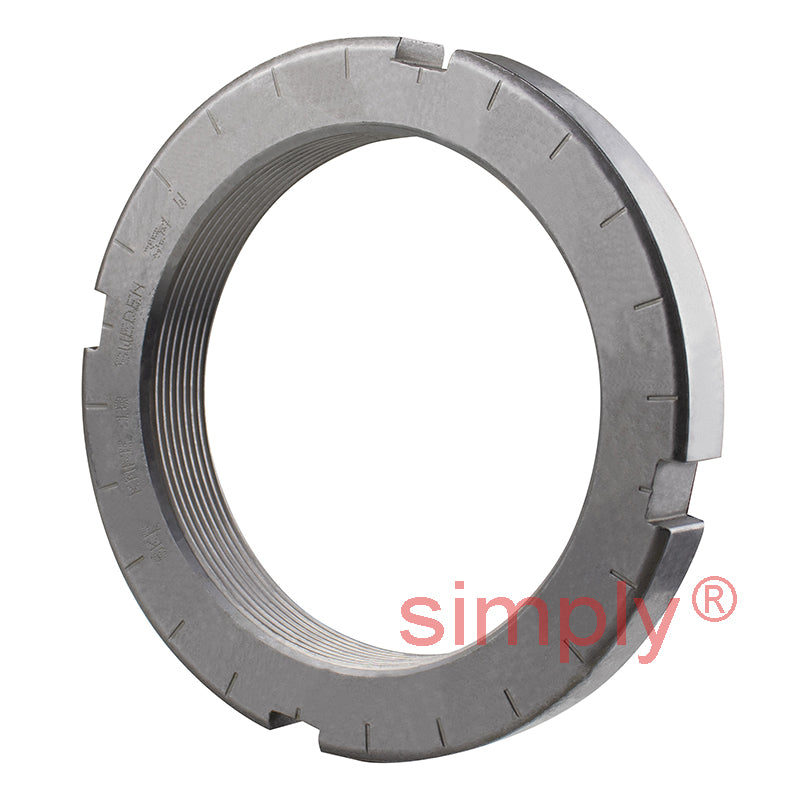

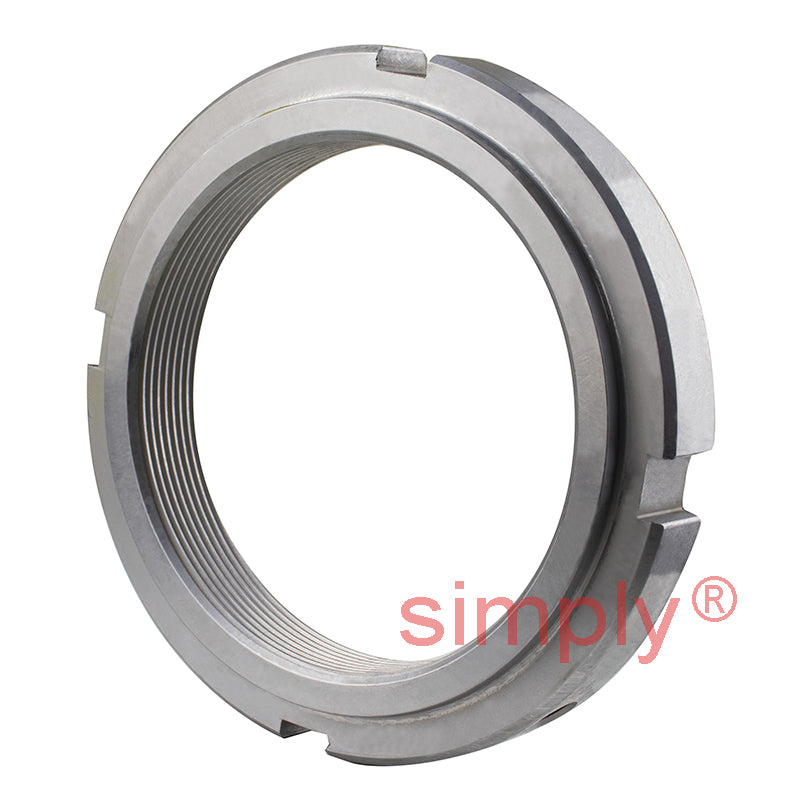

SKF KMFE18 Lock Nut with Locking Screw M90x2mm
SKF KMFE18 Lock Nut with Locking Screw M90x2mm
Regular price
$64.19
ex VAT
Regular price
Sale price
$64.19
ex VAT
In stock
Price Break
10+
$57.13
19+
$53.92
29+
$53.28
39+
$52.64
49+
$51.99
74+
$51.35
99+
$48.14
199+
$47.50
249+
$46.86
499+
$46.22
999+
$44.93
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M90x2
Technical
Technical
| d1 | 102mm |
|---|---|
| d3 | 120mm |
| B | 19mm |
| B1 | 15mm |
| b | 10mm |
| h | 4mm |
| Axial load capacity | 216 kN |
| Looseing torque | 335 Nm |
| Weight | 0.58 kg |
| G | M90x2 |
| Designation | KMFE18 |
| Spanner | HN18 |
| Grub | M8 |
| Screw tightening torque | 18 Nm |
