SKU: KMFE6-SKF

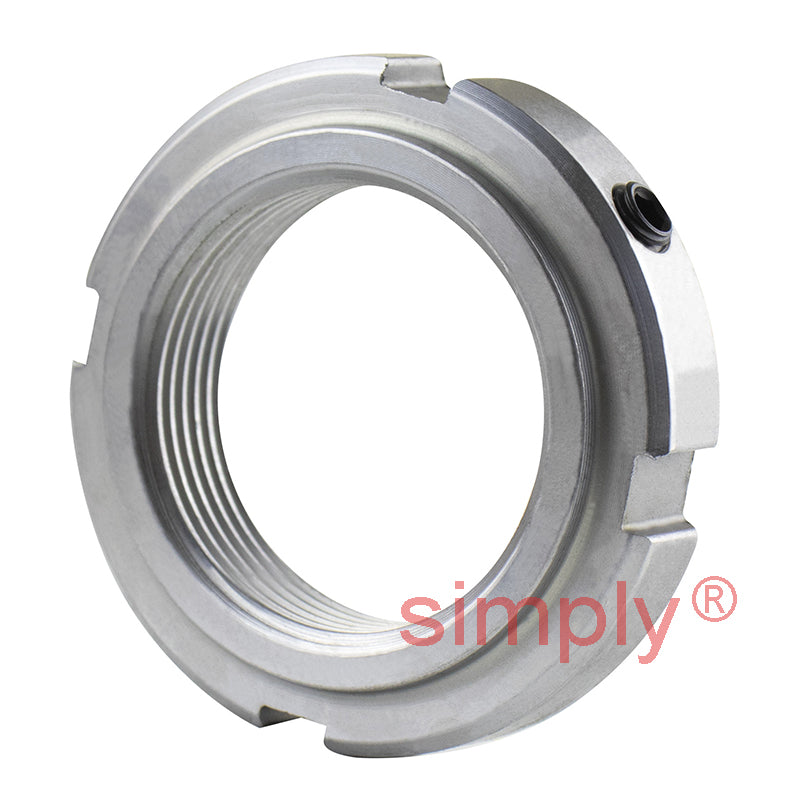

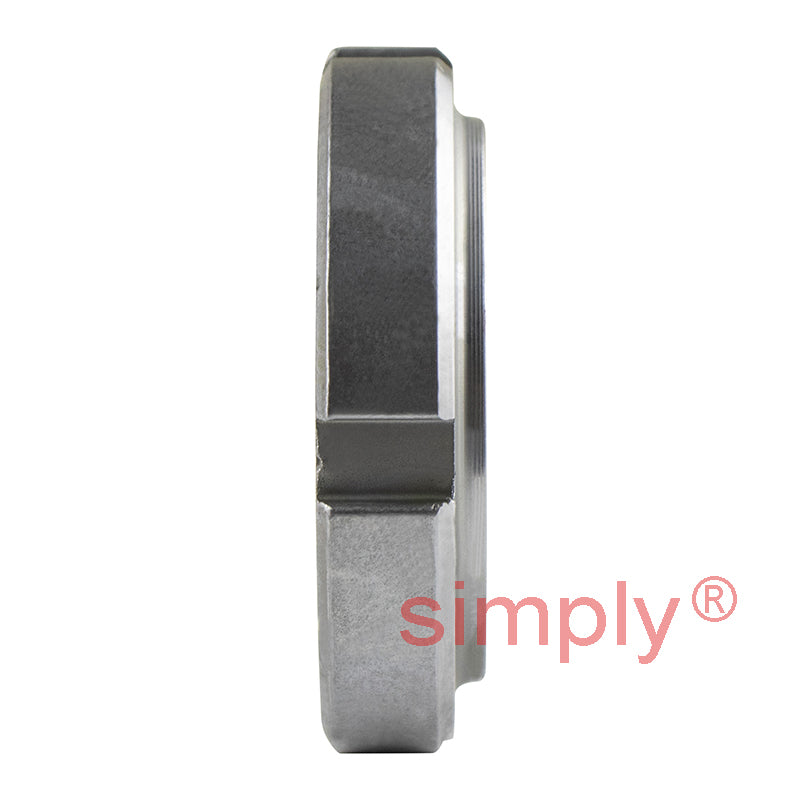

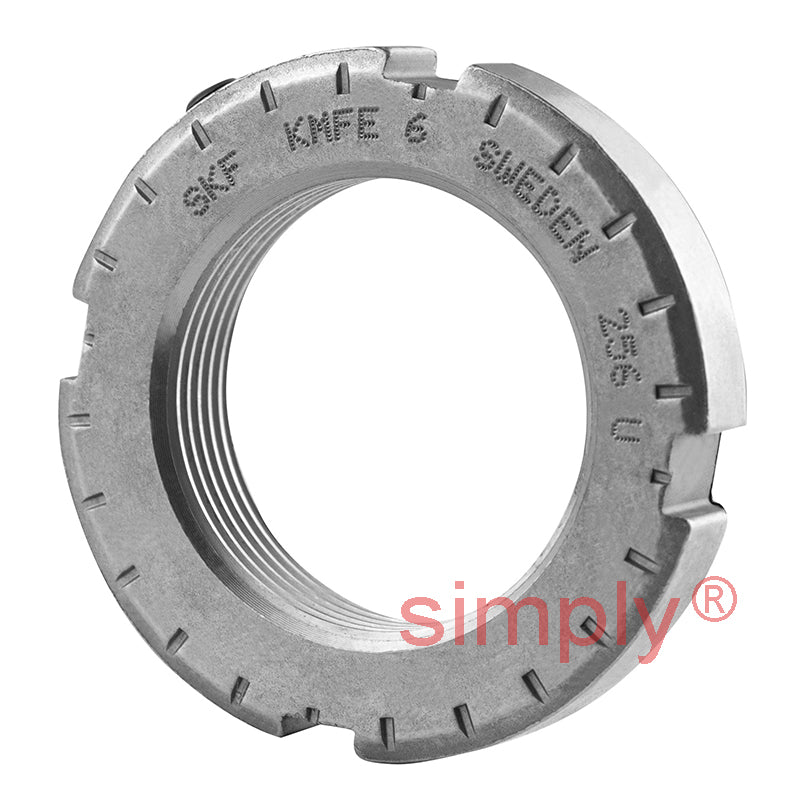

SKF KMFE6 Lock Nut with Locking Screw M30x1.5mm
SKF KMFE6 Lock Nut with Locking Screw M30x1.5mm
Regular price
$43.91
ex VAT
Regular price
Sale price
$43.91
ex VAT
In stock
Price Break
10+
$39.08
19+
$36.88
29+
$36.45
39+
$36.01
49+
$35.57
74+
$35.13
99+
$32.93
199+
$32.49
249+
$32.05
499+
$31.62
999+
$30.74
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M30x1.5
Technical
Technical
| d1 | 36mm |
|---|---|
| d3 | 45mm |
| B | 10.5mm |
| B1 | 8.5mm |
| b | 5mm |
| h | 2mm |
| Axial load capacity | 36.5 kN |
| Looseing torque | 42 Nm |
| Weight | 0.058 kg |
| G | M30x1.5 |
| Designation | KMFE6 |
| Spanner | HN6 |
| Grub | M5 |
| Screw tightening torque | 4 Nm |
