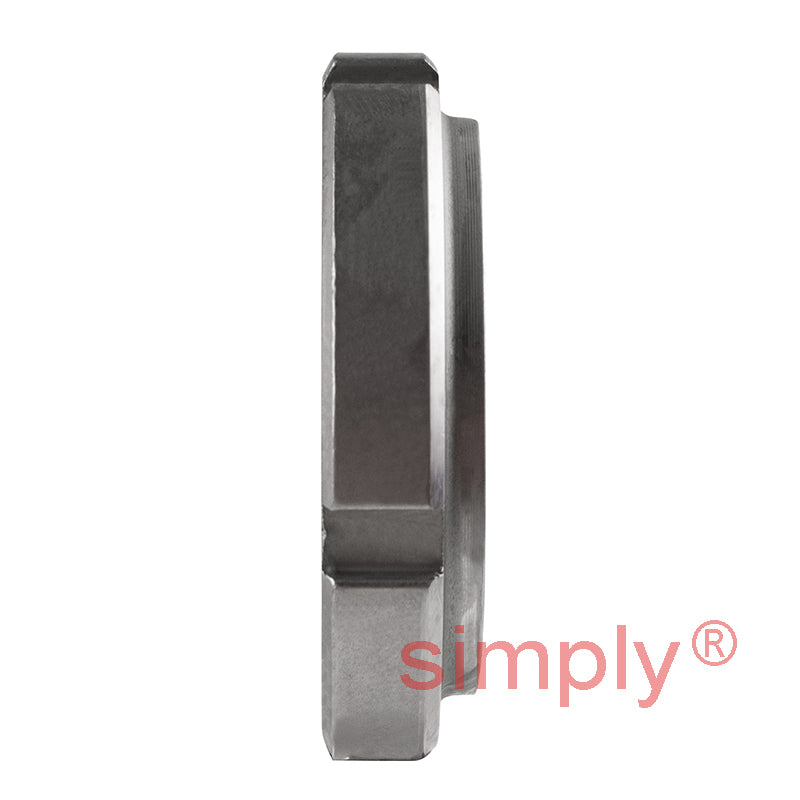

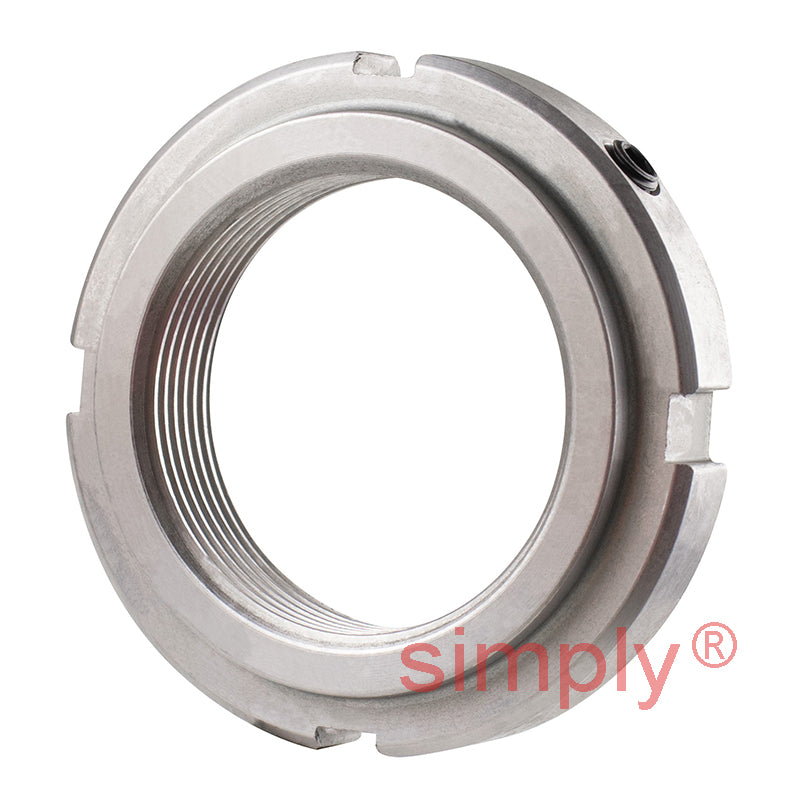

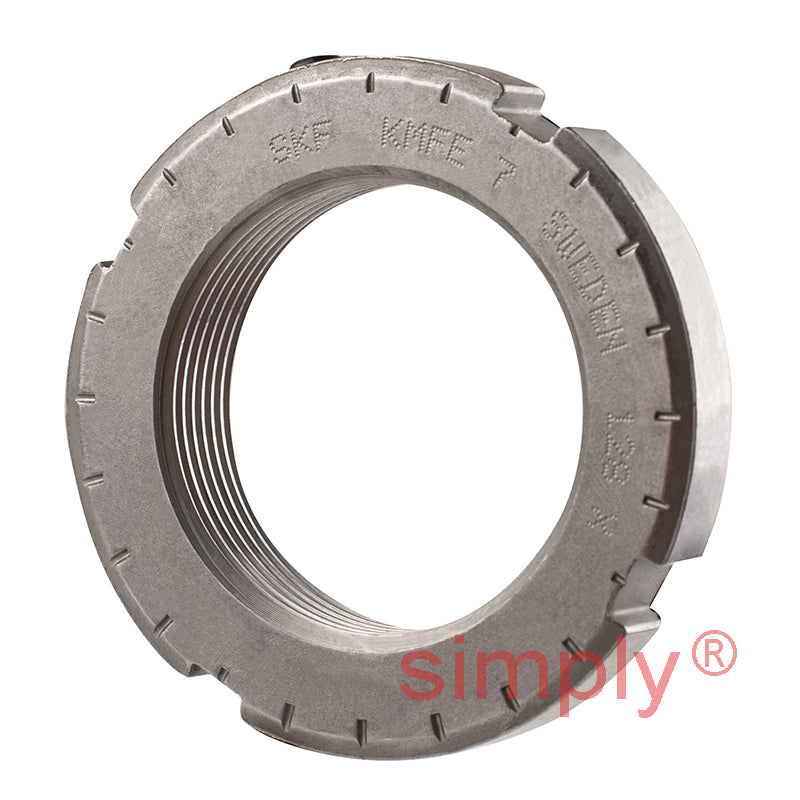

SKF KMFE7 Lock Nut with Locking Screw M35x1.5mm
SKF KMFE7 Lock Nut with Locking Screw M35x1.5mm
Regular price
$48.38
ex VAT
Regular price
Sale price
$48.38
ex VAT
In stock
Price Break
10+
$43.06
19+
$40.64
29+
$40.16
39+
$39.67
49+
$39.19
74+
$38.70
99+
$36.29
199+
$35.80
249+
$35.32
499+
$34.83
999+
$33.87
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M35x1.5
Technical
Technical
| d1 | 42.5mm |
|---|---|
| d3 | 52mm |
| B | 11.5mm |
| B1 | 8.5mm |
| b | 5mm |
| h | 2mm |
| Axial load capacity | 50 kN |
| Looseing torque | 49 Nm |
| Weight | 0.08 kg |
| G | M35x1.5 |
| Designation | KMFE7 |
| Spanner | HN7 |
| Grub | M5 |
| Screw tightening torque | 4 Nm |
