SKU: KMK1-SKF
SKF KMK1 Lock Nut with Integral Locking Device M12x1mm
SKF KMK1 Lock Nut with Integral Locking Device M12x1mm
Regular price
$70.10
ex VAT
Regular price
Sale price
$70.10
ex VAT
In stock
Price Break
10+
$62.39
19+
$58.88
29+
$58.18
39+
$57.48
49+
$56.78
74+
$56.08
99+
$52.58
199+
$51.87
249+
$51.17
499+
$50.47
999+
$49.07
Description
Description
|

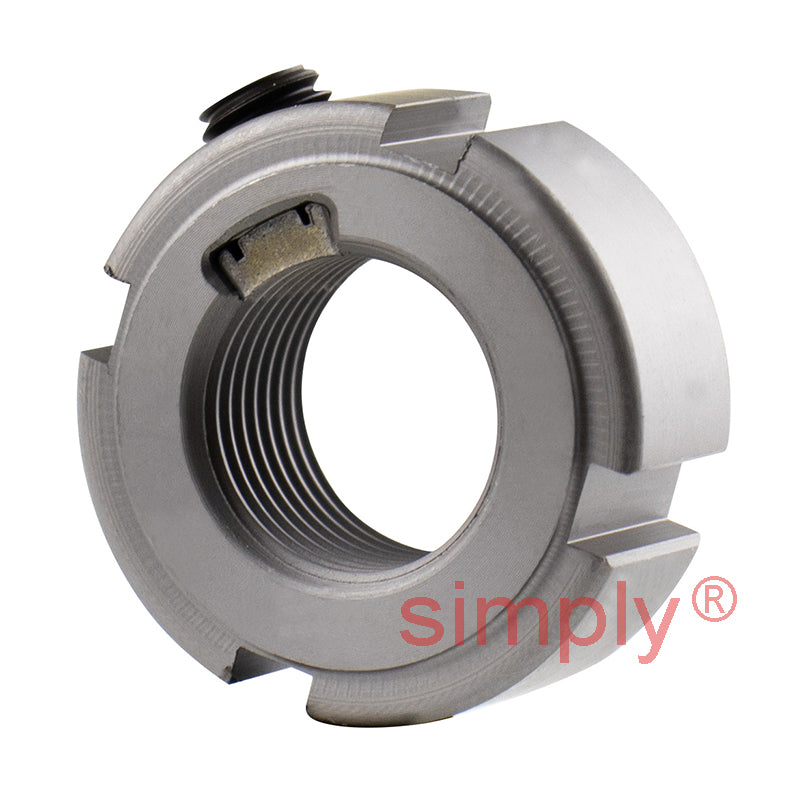

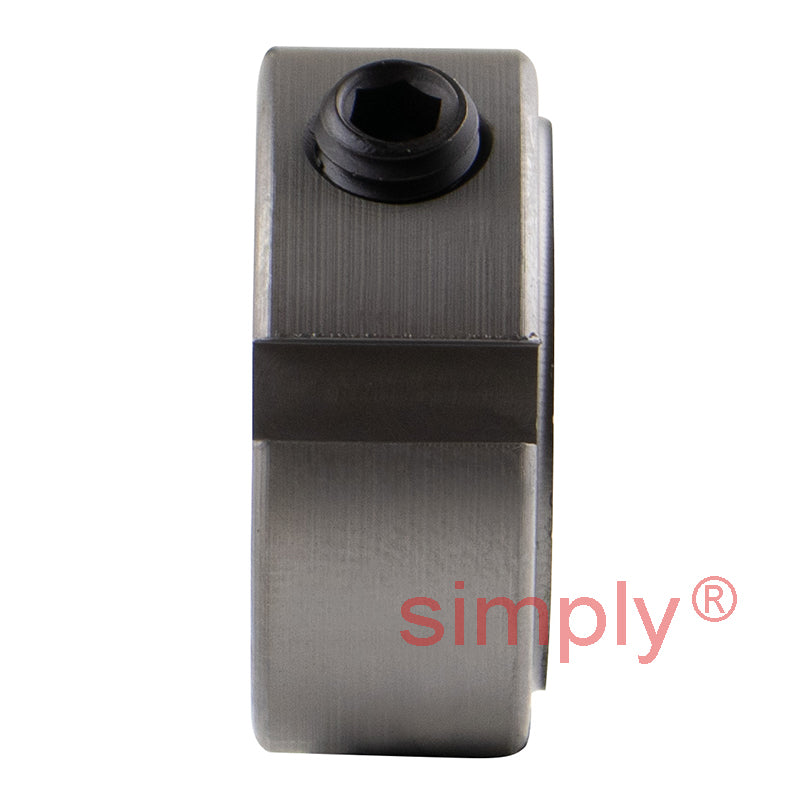

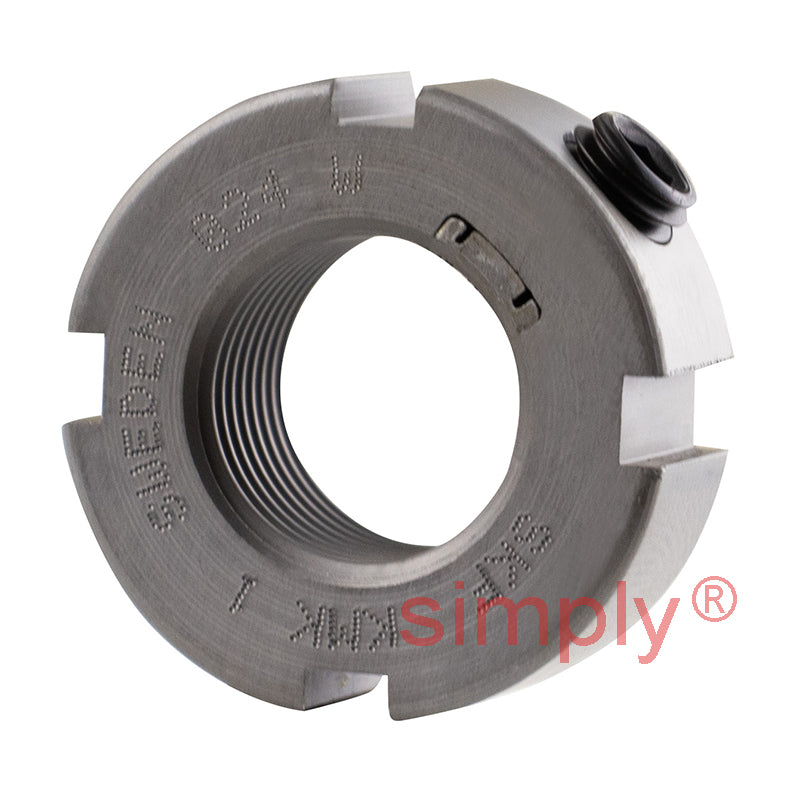

SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M12x1
Technical
Technical
| d1 | 18mm |
|---|---|
| d3 | 22mm |
| B | 9mm |
| b | 3mm |
| h | 2mm |
| Axial load capacity | 11.8 kN |
| Loosening torque | 9 Nm |
| Weight | 0.018 kg |
| G | M12x1 |
| Designation | KMK1 |
| Locking device | HN1 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
