SKU: KMTA7-SKF

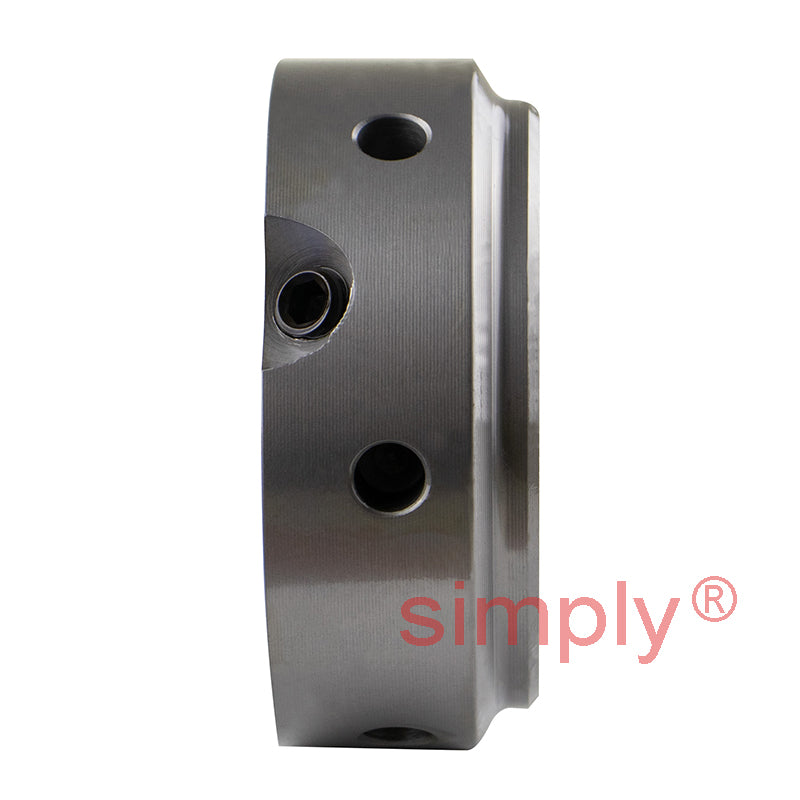

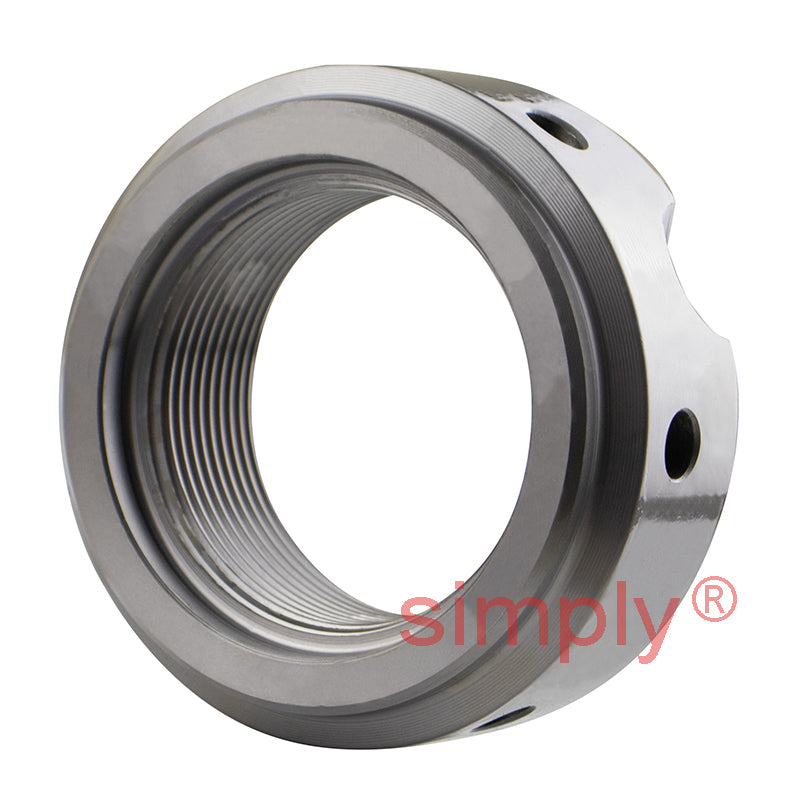

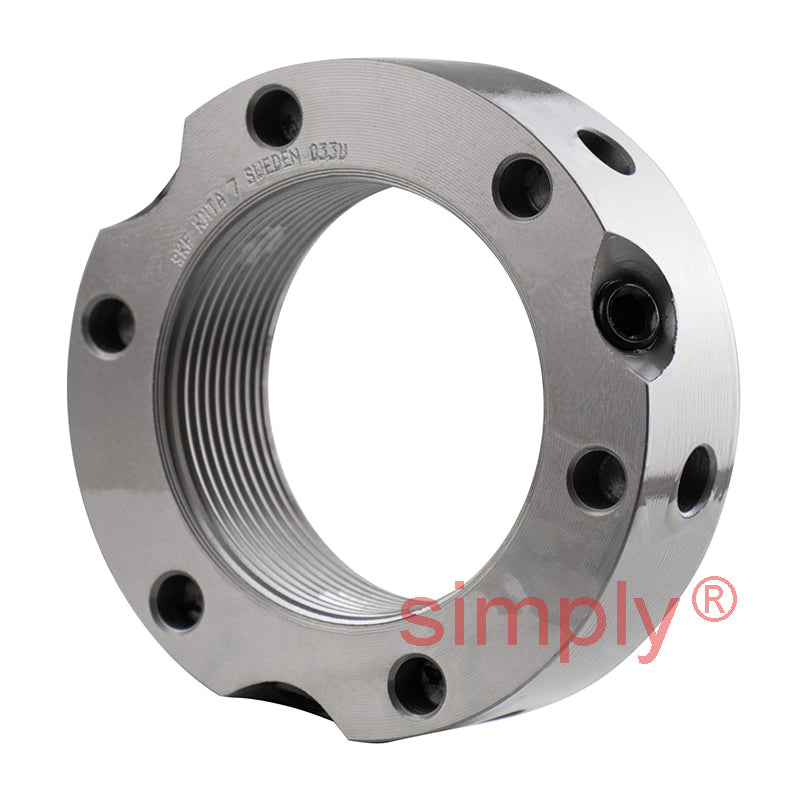

SKF KMTA7 Precision Locking Nut with Locking Pins M35x1.5mm
SKF KMTA7 Precision Locking Nut with Locking Pins M35x1.5mm
Regular price
$101.01
ex VAT
Regular price
Sale price
$101.01
ex VAT
In stock
Price Break
10+
$89.90
19+
$84.85
29+
$83.84
39+
$82.83
49+
$81.82
74+
$80.81
99+
$75.76
199+
$74.75
249+
$73.74
499+
$72.73
999+
$70.71
Couldn't load pickup availability
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M35x1.5
Technical
Technical
| G | M35x1.5 |
|---|---|
| d2 | 53mm |
| d3 | 47mm |
| d4 | 38mm |
| B | 20mm |
| J1 | 45.5mm |
| J2 | 11mm |
| N1 | 4.3mm |
| N2 | 5mm |
| Axial load capacity | 190 kN |
| Loosening torque | 65 Nm |
| Weight | 0.19 kg |
| Spanner | B52-55 |
| Grub Screw | M6 |
| Screw torque | 8 Nm |
| Name | KMTA7 |
