SKU: KP003

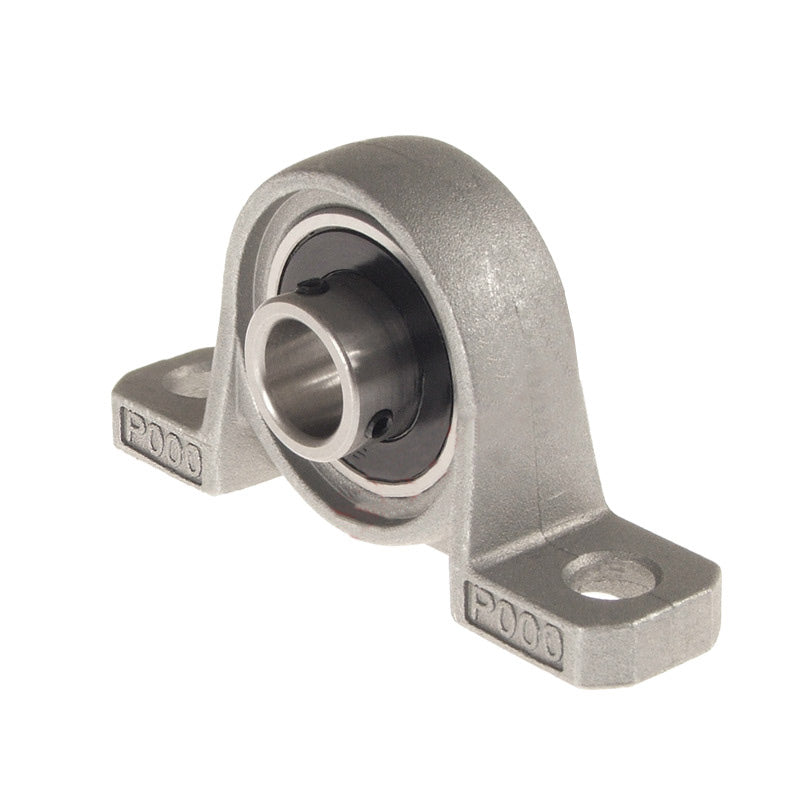

KP003 2 Bolt Aluminium Pillow Block with 17mm Bore Grub Screw Insert
KP003 2 Bolt Aluminium Pillow Block with 17mm Bore Grub Screw Insert
Regular price
$8.68
ex VAT
Regular price
Sale price
$8.68
ex VAT
In stock
Price Break
10+
$7.73
19+
$7.29
29+
$7.20
39+
$7.12
49+
$7.03
74+
$6.94
99+
$6.51
199+
$6.42
249+
$6.34
499+
$6.25
999+
$6.08
Description
Description
|
KP Series 2 Bolt Cast Aluminium Pillow Block Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has grub screws to allow locking to the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Style:
- KP
- Bolt Hole Centres:
- 67mm
Technical
Technical
| Shaft Diameter | 17mm |
|---|---|
| H | 24mm |
| L | 85mm |
| J | 67mm |
| A | 18mm |
| N | 7mm |
| H1 | 7mm |
| H2 | 47mm |
| B | 17.5mm |
| s | 5mm |
| Recommended Mounting Bolt | M6 |
| Weight | 0.17 kg |
| Dynamic load | 5978 N ~ 609.586 kgf |
| Static load | 3283 N ~ 334.773 kgf |
