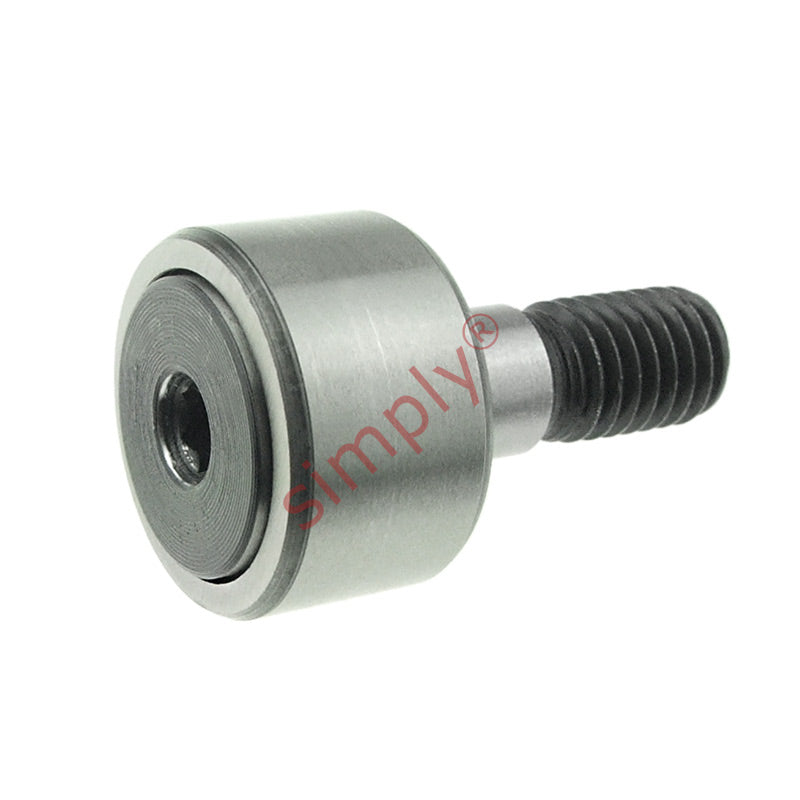

• Budget KR22PPA Contact Sealed Crowned Cam Follower 22x12x10 M10x1 Thread
1 1

SKU: KR22PPA-EU

Budget KR22PPA Contact Sealed Crowned Cam Follower 22x12x10 M10x1 Thread

Budget KR22PPA Contact Sealed Crowned Cam Follower 22x12x10 M10x1 Thread
$10.62 ex VAT
$10.62 ex VAT
Sale Sold out

In stock

Price Break
10+ $9.45
19+ $8.92
29+ $8.81
39+ $8.71
49+ $8.60
74+ $8.50
99+ $7.97
199+ $7.86
249+ $7.75
499+ $7.65
999+ $7.43
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
Brand / Quality:
EU Budget - Economy Quality
Outside Diameter:
22mm
Width:
12mm
Pitch:
M10x1
Technical
D 22mm
C 12mm
d (Stud Diameter) 10mm
B 36mm
B1 23mm
C1 0.6mm
d1 17.5mm
G M10x1
G1 12mm
r min 0.3mm
SW 5mm
Dynamic load 4400 N
Static load 5000 N
Fatigue load limit Pu 560 N
Radial dynamic load 4250 N
Radial static load 6000 N
Speed rating 8000 rpm
Weight 43 g
