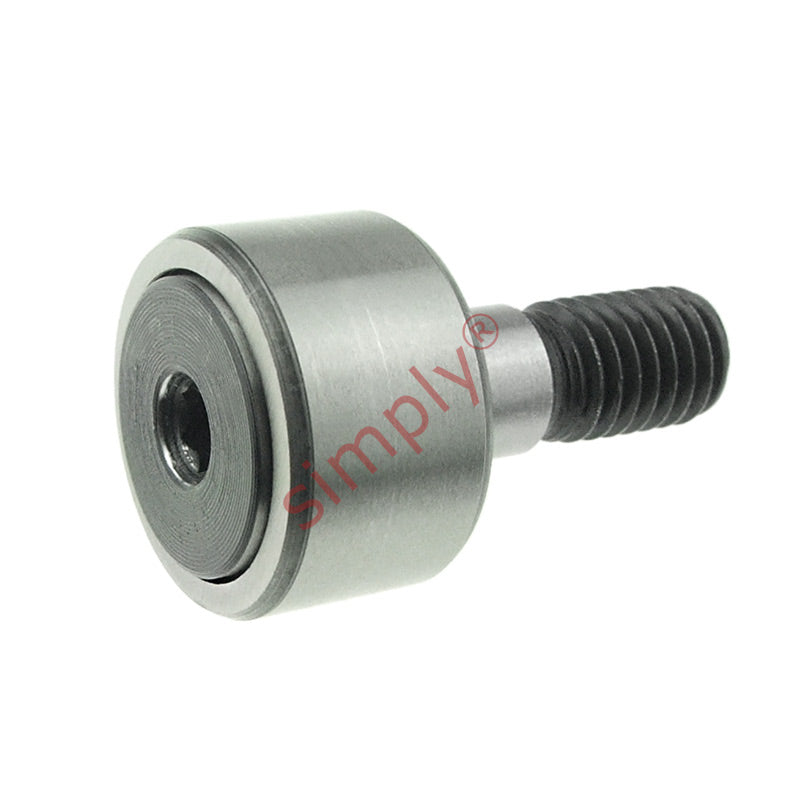

• IKO KR47PPA Contact Sealed Crowned Cam Follower 47x24x20 M20x1.5 Thread
1 1

SKU: KR47PPA-MB-IKO

IKO KR47PPA Contact Sealed Crowned Cam Follower 47x24x20 M20x1.5 Thread

IKO KR47PPA Contact Sealed Crowned Cam Follower 47x24x20 M20x1.5 Thread
$89.14 ex VAT
$89.14 ex VAT
Sale Sold out

In stock

Price Break
5+ $88.25
10+ $84.68
20+ $82.90
50+ $80.23
100+ $78.44
500+ $73.99
1000+ $62.40
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
Brand / Quality:
IKO - High Quality
Outside Diameter:
47mm
Width:
24mm
Pitch:
M20x1.5
Technical
D 47mm
C 24mm
d(Stud Diameter) 20mm
B 66mm
B1 40.5mm
B2 9mm
C1 0.8mm
d1 36.5mm
G M20x1.5
G1 21mm
M1 4mm
r min 1mm
SW 10mm
Dynamic load 14700 N
Static load 24500 N
Fatigue load limit Pu 2900 N
Radial dynamic load 23600 N
Radial static load 33500 N
Speed rating 2400 rpm
Weight 380 g
