• Budget KR80PPA Contact Sealed Crowned Cam Follower 80x35x30 M30x1.5 Thread
1 1

SKU: KR80PPA-EU

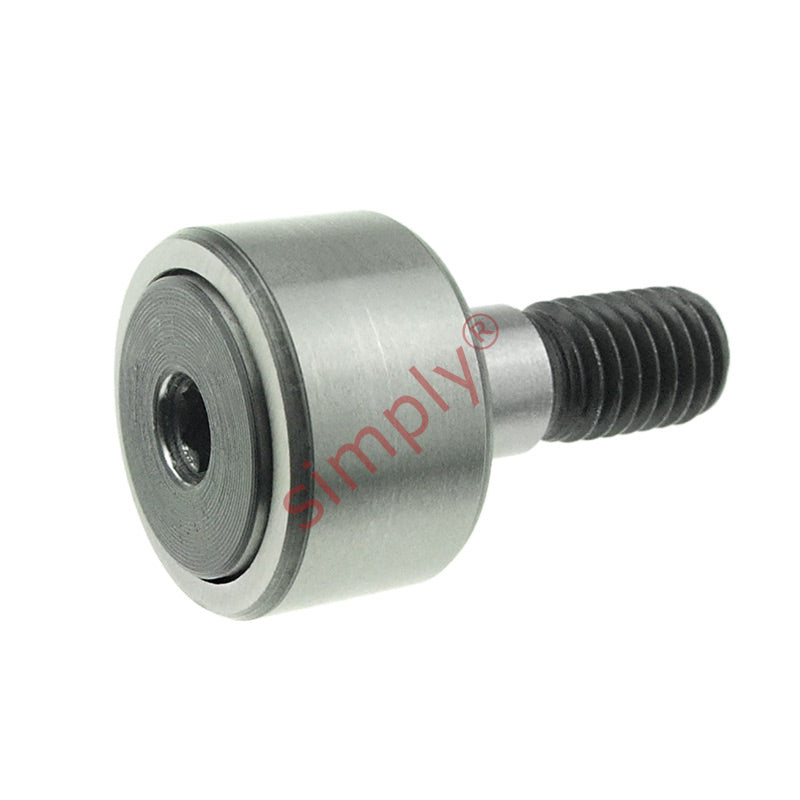

Budget KR80PPA Contact Sealed Crowned Cam Follower 80x35x30 M30x1.5 Thread

Budget KR80PPA Contact Sealed Crowned Cam Follower 80x35x30 M30x1.5 Thread
$77.48 ex VAT
$77.48 ex VAT
Sale Sold out

In stock

Price Break
10+ $68.96
19+ $65.08
29+ $64.31
39+ $63.53
49+ $62.76
74+ $61.98
99+ $58.11
199+ $57.34
249+ $56.56
499+ $55.79
999+ $54.24
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
Brand / Quality:
EU Budget - Economy Quality
Outside Diameter:
80mm
Width:
35mm
Pitch:
M30x1.5
Technical
D 80mm
C 35mm
d (Stud Diameter) 30mm
B 100mm
B1 63mm
B2 15mm
C1 1mm
d1 53mm
G M30x1.5
G1 32mm
M1 4mm
r min 1.1mm
SW 14mm
Dynamic load 36900 N
Static load 72000 N
Fatigue load limit Pu 9000 N
Radial dynamic load 106000 N
Radial static load 150000 N
Speed rating 1300 rpm
Weight 1610 g
