SKU: KR90PPA-MB

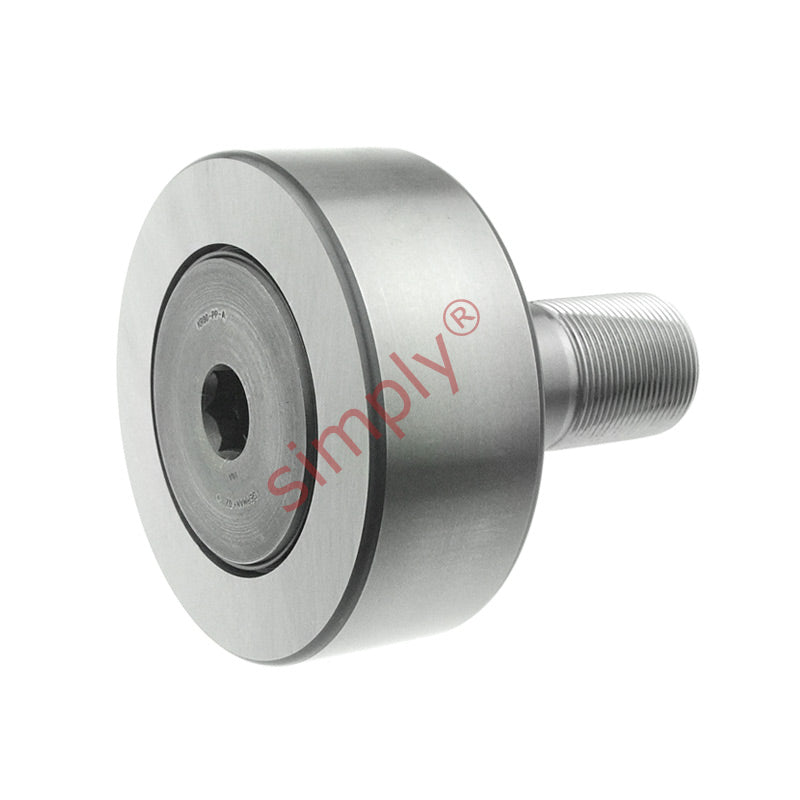

Major Brand KR90PPA Contact Sealed Crowned Cam Follower 90x35x30 M30x1.5 Thread
Major Brand KR90PPA Contact Sealed Crowned Cam Follower 90x35x30 M30x1.5 Thread
Regular price
$243.37
ex VAT
Regular price
Sale price
$243.37
ex VAT
In stock
Price Break
10+
$216.60
19+
$204.43
29+
$202.00
39+
$199.56
49+
$197.13
74+
$194.70
99+
$182.53
199+
$180.09
249+
$177.66
499+
$175.23
999+
$170.36
Couldn't load pickup availability
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
- Brand / Quality:
- Major Brand - High Quality
- Thread Pitch:
- M30x1.5
- Outside Diameter:
- 90mm
- Width:
- 35mm
Technical
Technical
| D | 90mm |
|---|---|
| C | 35mm |
| d(Stud Diameter) | 30mm |
| B | 100mm |
| B1 | 63mm |
| B2 | 15mm |
| C1 | 1mm |
| d1 | 53mm |
| G | M30x1.5 |
| G1 | 32mm |
| M1 | 4mm |
| r min | 1.1mm |
| SW | 14mm |
| Dynamic load | 38000 N |
| Static load | 76500 N |
| Fatigue load limit Pu | 9500 N |
| Radial dynamic load | 160000 N |
| Radial static load | 228000 N |
| Speed rating | 1300 rpm |
| Weight | 1980 g |
