SKU: KRE32PPA-MB

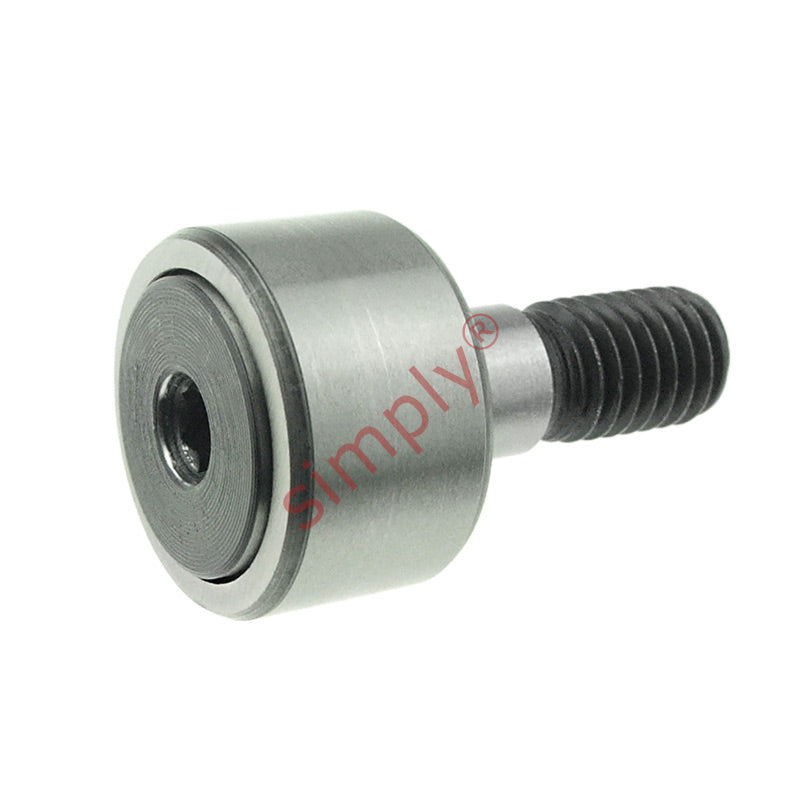

Major Brand KRE32PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 32x14x15 M12x1.5 Thread
Major Brand KRE32PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 32x14x15 M12x1.5 Thread
Regular price
$63.78
ex VAT
Regular price
Sale price
$63.78
ex VAT
In stock
Price Break
10+
$56.76
19+
$53.58
29+
$52.94
39+
$52.30
49+
$51.66
74+
$51.02
99+
$47.84
199+
$47.20
249+
$46.56
499+
$45.92
999+
$44.65
Couldn't load pickup availability
Description
Description
KRE-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on-side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
- Brand / Quality:
- Major Brand - High Quality
- Thread Pitch:
- M12x1.5
- Outside Diameter:
- 32mm
- Width:
- 14mm
Technical
Technical
| D | 32mm |
|---|---|
| C | 14mm |
| d(Stud Diameter) | 15mm |
| B | 40mm |
| B1 | 25mm |
| C1 | 0.6mm |
| d1 | 23mm |
| G | M12x1.5 |
| G1 | 13mm |
| r min | 0.6mm |
| SW | 6mm |
| Eccentric stud c | 0.5mm |
| B3 | 11mm |
| Dynamic load | 6710 N |
| Static load | 8500 N |
| Fatigue load limit Pu | 950 N |
| Radial dynamic load | 10600 N |
| Radial static load | 15000 N |
| Speed rating | 1550 rpm |
| Weight | 100 g |
