SKU: KW254

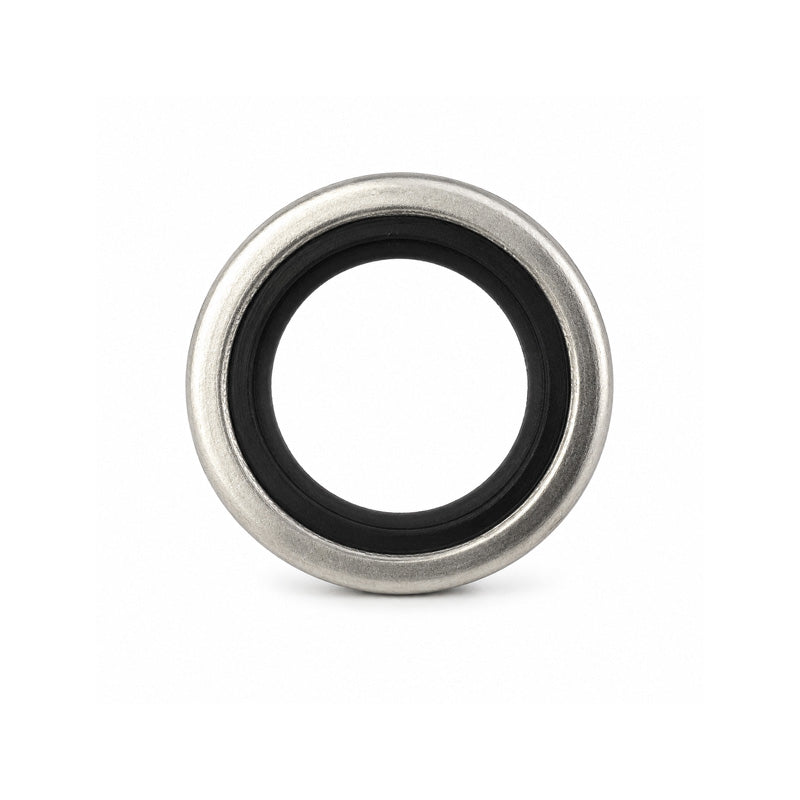

Self Centering Bonded Sealing Washer M18
Self Centering Bonded Sealing Washer M18
Regular price
$1.14
ex VAT
Regular price
Sale price
$1.14
ex VAT
In stock
Price Break
10+
$0.63
20+
$0.48
50+
$0.34
100+
$0.29
500+
$0.23
1000+
$0.17
Description
Description
Self-Centering Bonded Seal Washers: These washers are used to seal bolt heads and prevent leakage from hydraulic fittings, pipe joints and valve bodies. A bonded washer consists of a metal washer bonded to a rubber internal diameter that is wider than the washer. As the bolt is tightened, the rubber seal element is compressed until the bolt head contacts with the metal outer of the washer, creating an efficient high-pressure seal. The inside material will be made from Nitrile Rubber. EPDM, Silicone, and FKM are available upon request.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- M18
- Seals / Shields:
- Nitrile
- Material:
- Mild Steel
Technical
Technical
| a | 25.2mm approx. |
|---|---|
| b | 16.2mm approx. |
| d | 19mm approx. |
| h | 1.5mm approx. |
| g | 14.5mm approx. |
| f | 3mm approx. |
