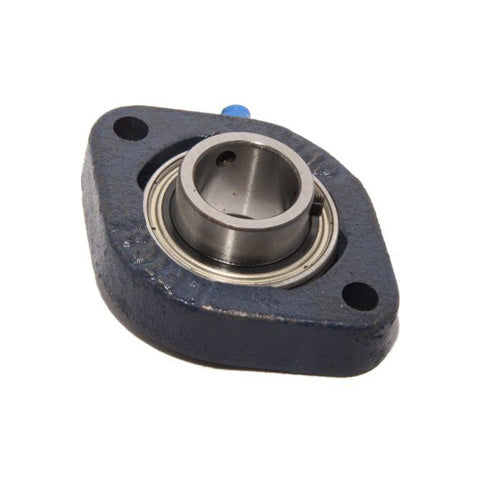

• RHP LFTC1-7/16 Two Bolt Oval Cast Iron Flange Housing Bearing 1-7/16 inch Bore
1 1

SKU: LFTC1.7/16-RHP

RHP LFTC1-7/16 Two Bolt Oval Cast Iron Flange Housing Bearing 1-7/16 inch Bore

RHP LFTC1-7/16 Two Bolt Oval Cast Iron Flange Housing Bearing 1-7/16 inch Bore
$76.25 ex VAT
$76.25 ex VAT
Sale Sold out

In stock

Price Break
10+ $67.86
19+ $64.05
29+ $63.29
39+ $62.53
49+ $61.76
74+ $61.00
99+ $57.19
199+ $56.43
249+ $55.66
499+ $54.90
999+ $53.38
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Style:
LFTC
Bolt Hole Centres:
100.01mm = 3.937 (3-15/16) inch
Technical
Bore 1-7/16 inch
L 3.661 inch
H 4.921 inch
J 3.937 inch
G 0.375 inch
A 0.866 inch
A1 1.488 inch
B 1.688 inch
s 0.69 inch
d1 1.838 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-7/16G+insonly">1035-1-7/16G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
